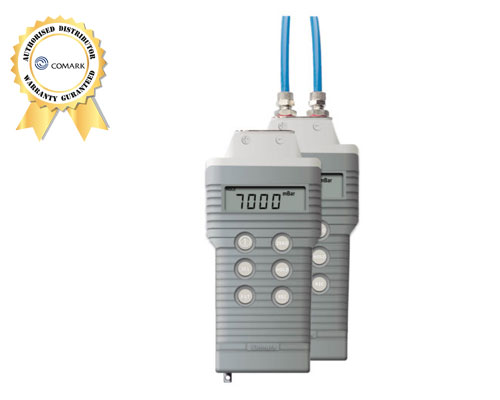

Comark Dry Use Pressure Meter C9555
- Mfr. Part No. C9555
- Warranty
- Manufacturer Comark
Price
Per unit SGD 741.0 (inclusive of GST)
Product Details
The Comark C9555 Dry Use Pressure Meter 0-to-±2100mbar / Dry Use Manometer 0-to-±2100mbar combines high accuracy with speed of response and is designed to function between 0-to-±2100mbar with twin inputs for positive/negative gauge or differential pressure measurement.
- Pressure Measurement Range: 0-to-±2100 mBar
- Twin Inputs for Gauge or Differential Pressure
- Pressure units: PSI mbar inH2O inHg mmHg torr kPa cmH2O Kgcm-2
- Warranty: 2 Years
Product Specification
| Name | Value |
|---|---|
| Pressure Measurement Range | 0 to ±2100 mBar |
| Resolution | 0.1mBar |
| Accuracy | ±0.2% of full scale (FS) at +23°C |
| Repeatability | ±0.1% of full scale (FS) at +23°C |
| Mean Temperature Coefficient of Reading | <0.1% per °C |
| Operating Temperature Range | 0 to 50°C |
| Humidity Range | 10 to 90% RH non-condensing |
| EMC | Tested to EN61326-1 Criteria B performance |
| Environmental Protection | IP67, BS:EN60529, IEC529 |
| Battery | *9V PP3 6F22 — MN1604 UCAR9V |
| 125 hours (using MN1604) | |
| *Non-IS Models Only. IS models must only use Zinc Chloride Battery | |
| Low Battery Warning | Displays BAT just before end point of battery |
| Over Pressure Indication | – – – – |
| Over 9999 Reading Indication | Lowest 4 digits blink |
| Connections | 1/8″ BSP female |
| Dimensions | 175 x 82 x 32mm |
| Weight | 330gm including battery |
| Warranty | 2 Years |
Product Additional Information
Data Sheet (4)
20527-1-Pressure-Meters-datasheet.pdf
