Home Shop Fluke 417D Laser Distance Meter

Products Detail

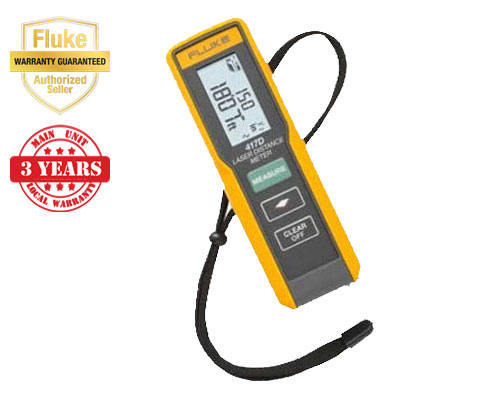

Fluke 417D Laser Distance Meter

  • Mfr. Part No. FLUKE-417D
  • Warranty 3 years warranty
  • Manufacturer Fluke Industrial
Fluke 417D Laser Distance Meter
Fluke 417D Laser Distance Meter

Price

Per unit SGD 228.0 (inclusive of GST)

Quantity

Add To Favourites

Remove from Wishlist

Product Details

The Fluke 417D is accurate durable and easy to use—just point and shoot. The simple design and easy one-button measurement operation allows you to minimize time spent measuring and maximize the reliability of measurements.

Additional Product Features:

  • Large 2-line illuminated LCD screen.
  • Three different measurement tasks can be completed quickly and easily with one hand.
  • The bright laser is clearly visible so you can always see your target point even from a hard-to-reach spot or long distance.
  • Designed for both indoor and outdoor applications.
  • Operates with the Fluke durability and quality you expect.
  • Protected by a 3-year warranty.

Key features

  • The Fluke 417D laser meter is accurate durable and easy to use—just point and shoot
  • Instantly measure up to 40 m (131 ft.) with 1-button point-and-click
  • Continuous measurement capable: adjusting as you move closer and farther from your target
  • Quickly calculate area (sq feet/meters)
  • 1-meter drop tested and IP54 rated: built to withstand rainy or dusty conditions
  • Great for interior and exterior applications

Product Specification

417D
Typical range [1] 0.2-40 m/0.6-131 ft
Typical measuring tolerance* [1] 2.0 mm ± 1.5 mm/± 0.06 in ***
Maximum measuring tolerance [2] ± 3.0 mm/0.12 in ***
Accuracy up to 10m (+/-) ± 2 mm
Display 2 line/1 mm/1/32 in
Display illumination Yes
Laser point at distance 6/30/60 mm (10/40/100 m)
Area Yes
Units setting (smallest units displayed) 0,000m, 0′ 00” 1/32, 0 in 1/32
Auto laser switch off 90 sec
Auto power switch off 180 sec
General
Laser class II
Laser type 635 nm, <1 mW
Protection class IP54
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 3,000 measurements
Size (Hx W x D) 11.9 x 3.8 x 2.6 cm
Drop test 1 meter
Weight (with batteries) 95g (3.35 oz)
Temperature range: Storage -25 °C to 70 °C (-13 °F to 158 °F)
Temperature range: Operation -10 °C to 50 °C (14 °F to 122 °F)
Calibration cycle Not applicable
Maximum relative humidity 85 % @ 20°F to 120 °F
(-7 °C to 50 °C)
Safety CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)
EMC 61326-1:2006
