Price

Product Details

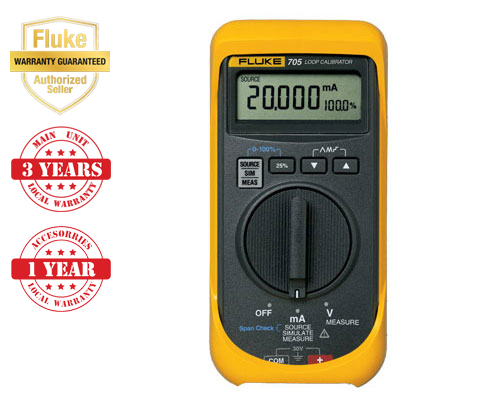

Fluke 705 loop calibrator provides a cost-effective integrated solution for calibrating milliamp loops

The Fluke 705 is a cost-effective integrated solution for calibration repair and maintenance of milliamp loops. It features a large display and simple pushbutton interface for ease of use. Plus it offers the other capabilities you need most to calibrate mA loops including:

• mA sourcing simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Includes “span check” for fast confirmation of zero and span.
• Provides selectable slow ramp fast ramp and step to provide smooth outputs for valve slewing and loop functional tests.
• Includes a 24 volt internal loop supply so you can power and read a transmitter at the same time without a DMM.
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Offers 0 – 20 mA or 4 – 20 mA default start up modes
• Comes with a protective yellow holster with test lead storage and a three year warranty

And you get all of that in a compact case with a separate protective holster and a three year warranty.

Key features
