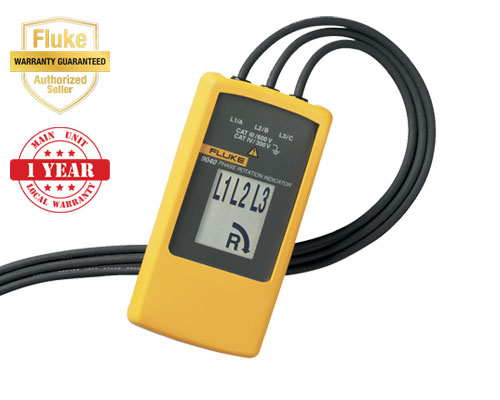

Fluke 9040 Phase Rotation Indicator
- Mfr. Part No. FLUKE-9040 ESPR
- Warranty
- Manufacturer Fluke Industrial
Price
Per unit SGD 645.0 (inclusive of GST)
FLUKE-9040 ESPR PHASE ROTATION INDICATOR ESPR Local (Singapore) manufacturer warranty : 1 Years Main unit 1 Year on Accessories
Product Details
Phase rotation indicator with high voltage capability for industrial applications

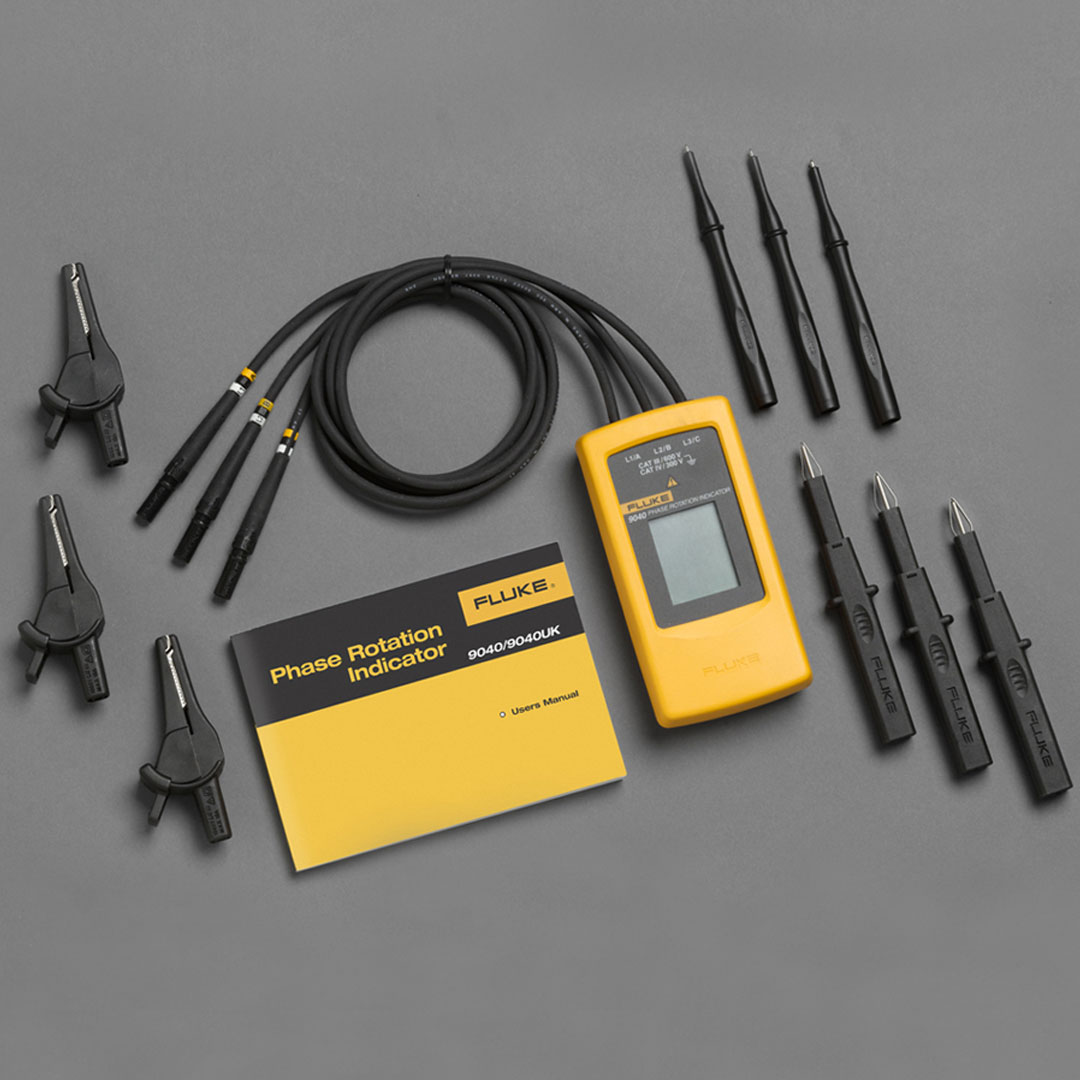

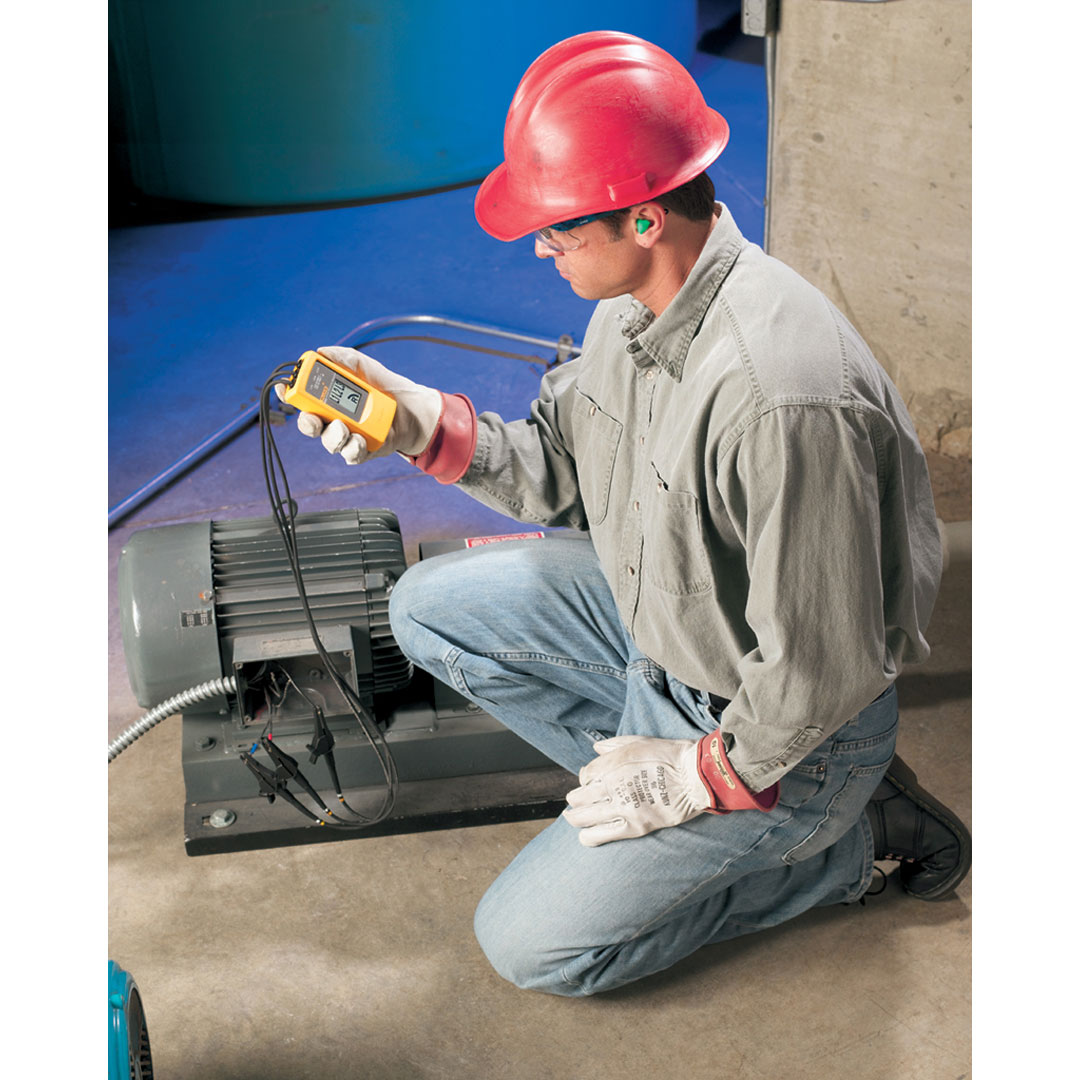

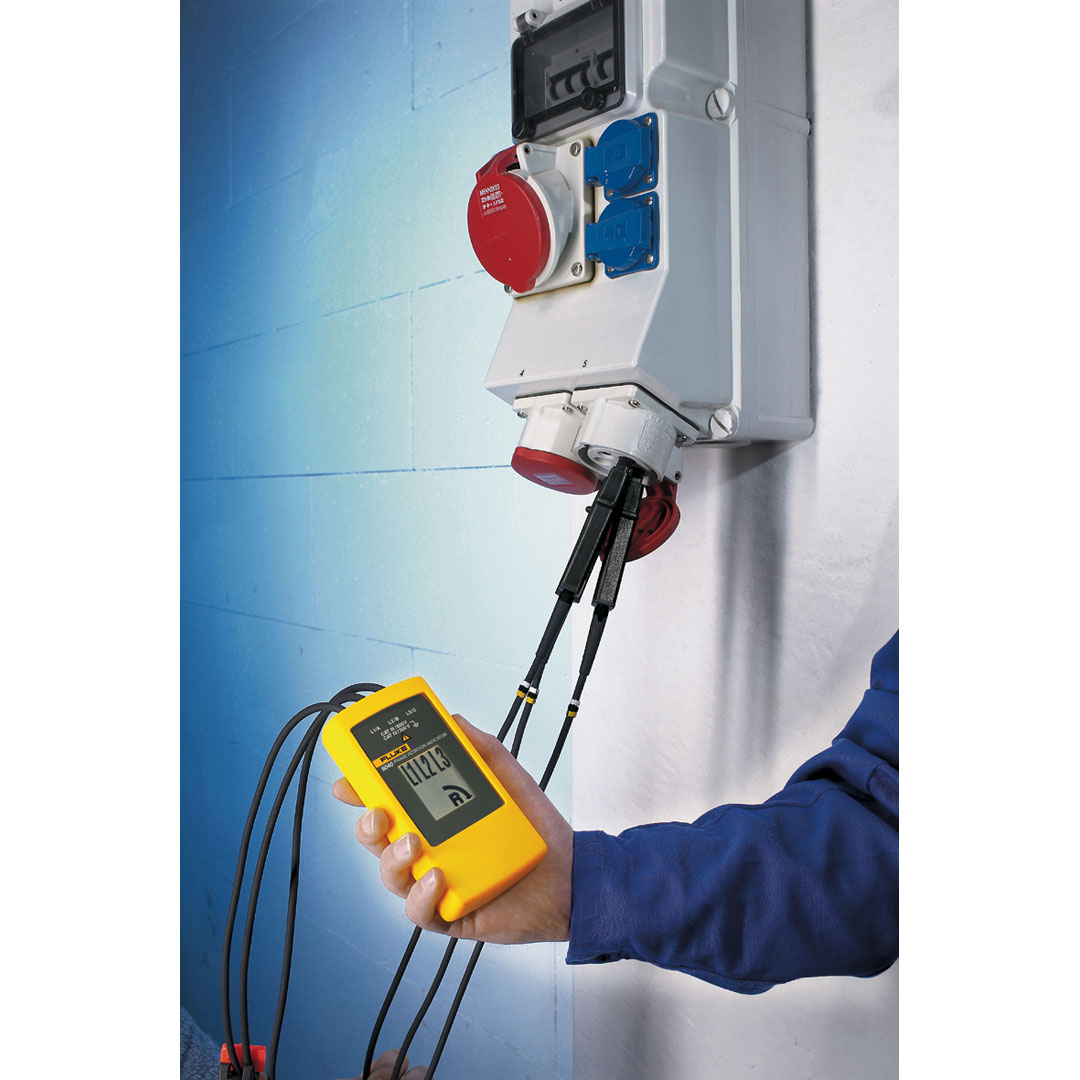

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact also in industrial sockets.
Key features
- 3 phase indication
- Indication of phase rotation
- Clear LCD display
- No battery required
Product Specification
| Technical Specifications | |
| Voltage Range | 40-700 V |
| Frequency Range | 15-400 Hz |
| Operating Timer | Continuous |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C |
| Dust/Water Resistance | IP 40 |
| Safety Specifications | |
| Electrical Safety | EN 61010, |
| EN 61557-7 | |
| Overvoltage category | CAT III, 600 V |
| CAT IV, 300V | |
| Mechanical and General Specifications | |
| Size | 124 x 61 x 27 mm |
| Weight | 200 g |
| Power supply | From unit under test |
| Warranty | 2 years |
Product Additional Information
Product Manuals (3)
Data Sheets (1)
Application Notes (1)
