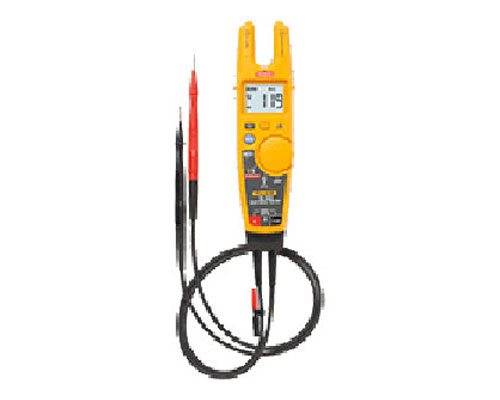

Fluke T6-600 Electrical Tester
- Mfr. Part No. T6-600/APAC
- Warranty
- Manufacturer Fluke Industrial
Price
Per unit SGD 390.0 (inclusive of GST)
T6-600 Local (Singapore) manufacturer warranty : 2 Years Main unit 1 Year on Accessories
Product Details
Measure voltage … without test leads

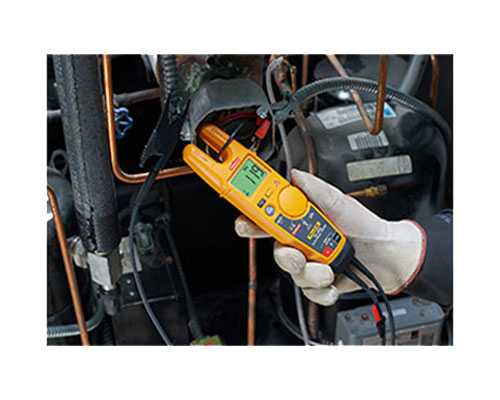

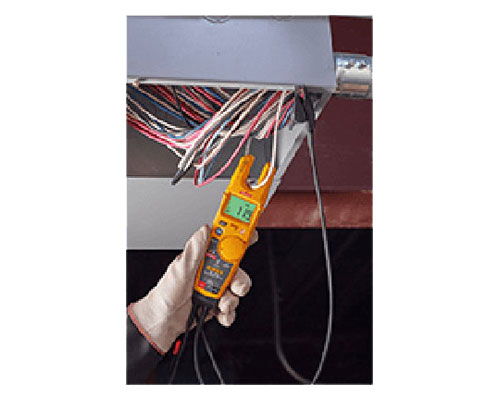

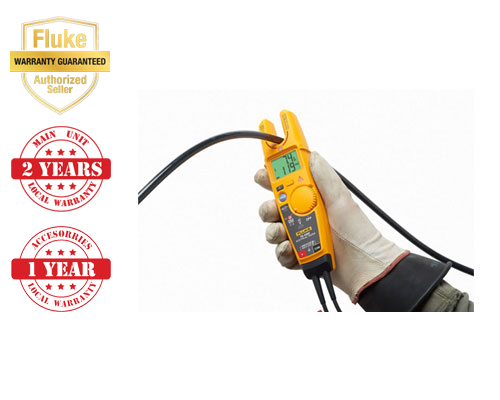

Working in cramped electrical boxes and trying to find a safe metallic contact points is often challenging. The Fluke T6-600 Electrical Tester with FieldSense™ technology lets you quickly and safely take measurements by sliding the open fork over a conductor without the need for test leads. The T6-600 works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening
How FieldSense™ technology works
FieldSense™ technology is a breakthrough in how voltage is measured. Other open fork testers detect a magnetic field to show AC current. FieldSense™ technology detects an electrical field which interacts with a reference signal created by the T6 tester which shows the measurement value on the tester’s display.
Tips on using FieldSense technology
- Do not hold or touch wire you are testing during a measurement.
- Use the black probe to make the ground connection if you are wearing gloves insulated footwear or standing on an insulated ladder
Measurement versatility
The electrical tester offers a variety of measurement options giving you an all-in-one troubleshooting tool. Measure true rms voltage and current from 0 to 200 A AC or 1 to 600 V AC or DC. You can also gather resistance measurement from 1 Ω to 2000 Ω. With the easy-to-read backlit display you can keep see your work in dark environments and keep your most recent measurement on the screen with the HOLD button for easy viewing. The T6-600 also accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation.
Key features
- Measure AC voltage current frequency without touching a live wire
- Troubleshoot with all power supply measurements at-a-glance
- See AC voltage and current values without test leads
What’s in the box:
- Fluke T6-600 Electrical Tester
- Attached test leads with removable 4 mm probe caps
- Quick Reference Guide
Product Specification
| Measurement Specifications | ||||
| Function | Requires test leads | Range | Resolution | Accuracy[1] |
|---|---|---|---|---|
| FieldSense ac voltage true-rms |
No | 600 V | 1 V | ±(3% + 3 counts) 45 Hz – 66 Hz[2] [3] |
| FieldSense ac current true-rms |
No | 200.0 A | 0.1 A | ±(3% + 3 counts) 45 Hz – 66 Hz |
| FieldSense frequency (Hz) |
No | 1 Hz | ±(1% + 2 counts)[3] | |
| Volts ac true-rms | Yes | 600 V | 1 V | ±(1.5% + 2 counts) 45 Hz – 66 Hz |
| Volts dc | Yes | 600 V | 1 V | ±(1% + 2 counts) |
| Resistance | Yes | 2000 Ω | 1 Ω | ±(1% + 2 counts) |
| Safety | 600 V CAT III | |||
|
Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy[3]: FieldSense is specified from 16 V to 100 % of range. |
||||
