Products Detail

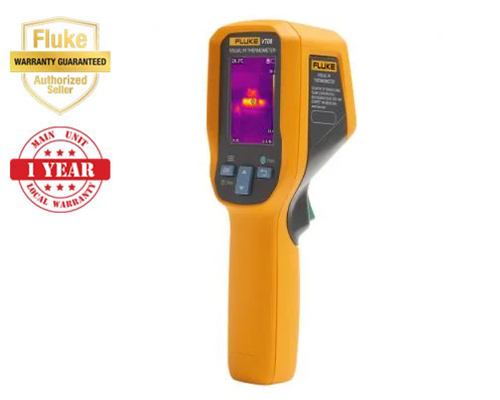

Fluke VT08 Visual IR thermometer
- Mfr. Part No. Fluke VT08
- Warranty 1 year warranty
- Manufacturer Fluke Industrial
Price
Per unit SGD 1240.0 (inclusive of GST)
Product Details
Key features
- 120 x 90 resolution for more details
- Wide temperature range -20 °C to 400 °C
- Blends a visual image with infrared heat image overlay in real-time to clearly distinguish the measured target
- IP65 rated for dust and water proof 2m drop test suitable for harsh industrial environments
- Quickly locate the measured target with built-in laser pointer
- 2 hours charging time 5 hours battery life
- Single-level menu interface Open-and-View
Product Description
Fluke VT series is built with legendary Fluke ruggedness and quality. With compact design and upgraded function the temperature measurement is visualized so that you can obtain a clear and accurate infrared thermal image.
Product Specification
| Thermal image and optics | VT08 | VT06 |
| Infrared resolution | 120×90 | |
| IR frequency band | 7.5~14 μm(long wave) | |
| Frame rate | 9 Hz | |
| Thermal sensitivity/NETD | <60 mk | |
| Field of view (H x V) | 50° x 37.5° | |
| Spatial resolution | 7.6 mrad | |
| Focus system | Focus free | |
| Minimum focusing distance | 0.5 m (19.7 in) | |
| Visible light | ||
| Visible resolution | 320×240 | NA |
| Visible FOV (H x V) | 53° x 41° | NA |
| Image display and storage | ||
| Image mode | Thermal image Visible image PIP |
Thermal image |
| Palettes | Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale | |
| Internal storage | 14 GB (>50000 images) | |
| File format | JPEG compression format (.jpg) | |
| PIP mode | Yes | No |
| Temperature measurement | ||
| Temperature range | -20 °C to 400 °C [-4 °F to 752 °F] (not specified for below -10 °C) |
|
| Temperature accuracy | ±2°C or 2% @ 23°C±5°C, whichever is greater | |
| Emissivity | Adjustable | |
| Background temperature compensation | Yes | |
| Auto high-/low-temperature capture | Yes | |
| Center point temperature | Yes | |
| Alarm | Maximum/minimum temperature alarm in full screen | |
| Interface and lens | ||
| Visible lens | Yes | No |
| Flashlight | Yes | No |
| Infrared lens | Yes | |
| Laser sighting | Yes | |
| Type-C interface | Yes | |
| TF card slot | No | |
| Tripod interface | Yes | |
| Mobile App | No | |
| Power system | ||
| Battery type | Rechargeable Li-ion battery, unremovable | |
| Battery operation time | ≥5 hrs (VT08) ≥8 hrs (VT06) Actual battery life depends on environment and settings |
|
| Charging Time | <2.5 hrs to full | |
| Battery charging temperature | 0 °C to 45 °C | |
| Battery charging system | Charge in the machine (the battery is not removable) | |
| AC adapter | Include power supply, universal adapter Output: 5 VDC, 2 A |
|
| Power saving mode | Yes | |
| Environmental specifications | ||
| Operating temperature | -10 °C to 50 °C | |
| Storage temperature | -40 °C to 70 °C | |
| Operating altitude | 2000 m (1.24 mi) | |
| Storage altitude | 12 000 m (7.5 mi) | |
| Others | ||
| Warranty | 1 year | |
| Standard accessories | Wrist strap, quick reference guide, charger + adapter, Type-C data cable, data-downloading card | |
| Display | 6.096 cm (2.4-inch) LCD | |
| Language | English | |
| Size | 20.4 cm x 6.6 cm x 7.6 cm | |
| Weight | 0.36 kg | 0.35 kg |
| Relative humidity | ≤90%, non-condensing | |
| Safety | ||
| Safety standards | IEC 61010-1: Pollution Degree 2 | |
| Laser | IEC 60825-1: Class 2, 650 nm, <1 mW | |
| Battery | IEC 62133-2, UN 38.3 | |
| Protection class | IEC 60529: IP65 (with Type-C port closed) | |
| Drop test | 2 m | |
| Electromagnetic Compatibility (EMC) | ||
| International | IEC 61326-1: Industrial Electromagnetic Environment CISPR 11: Group 1, Class A |
|
Product Additional Information
Manuals (4)
VT06 VT08 Product specification.pdf
VT06 VT08 Visual IR Thermometer Quick reference guide.pdf
Brochures (1)
Data Sheets (1)
