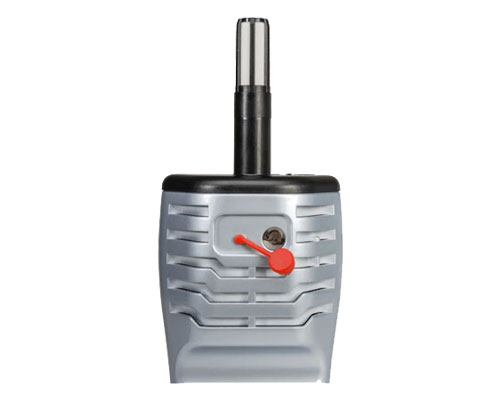

Rotronic Handheld CO2 Humidity and Temperature Meter: CP11
- Mfr. Part No. CP11
- Warranty
- Manufacturer Rotronic
Price
Per unit SGD 750.0 (inclusive of GST)
Product Details
The CP11 handheld instrument is the latest development of an economical multiple parameter meter that simultaneously measures and records CO2 humidity and temperature. It also calculates the dew point and wet bulb temperature. Equipped with the field-tested ROTRONIC HYGROMER® IN-1 humidity sensor this instrument offers unbeatable value for money. Using the ROTRONIC HW4-Light software that comes with the device it can be set as required and data can be downloaded saved and analyzed.
Applications
Indoor air quality monitoring in underground car parks (safety) Leak monitoring in filling plants (safety).
Features
• Measures and logs CO2 relative humidity and temperature
• Calculates the dew point
• Hygromer® IN-1 humidity sensor
• 18 000 data point memory for CO2 humidity and temperature values
• Maximum minimum and average value display
• Adjustable audible CO2 alarm
• Display with backlight
• Adjustable auto power-off function
• Mini USB interface
Software
Supplied with the instrument or available as download SW2.1 (settings data download display of measured values) or compatible with optionally available HW4 software.
Product Specification
| Accuracy at 23 ±5 °C | ±30 ppm ±5 % of the measured value, ±2 %rF (10…90 %rF), others ± 5 %rF, ±0,3 K |
|---|---|
| Measuring range | 0…5000 ppm, 0.1…99.95 %RH, -20…60 °C |
| Range of application | 0…50 °C / 0.1…99.9 %RH, non-condensing |
| Measurement principle | Non dispersive infrared (NDIR) with automatic baseline correction (ABC) |
| Adjustment points | 0, 400 ppm and 35, 80 %RH |
| Pressure dependence | +1.6 % reading per kPa |
| Zero drift | <10 ppm/year |
| Power supply | 4 x AA batteries / optional AC adapter AC1214 |
| Battery lifetime | 50 h |
| Measured value memory | 18,000 values with time stamp, automatic recording (%RH / °C / ppm), 99 single values with time stamp, manual recording, (%RH / °C / DP / Tw / ppm) |
| Warm-up time | <1 min. |
| Long-term stability | < 1.5 %RH per year |
| Humidity sensor | ROTRONIC HYGROMER® IN-1 |
| Temperature sensor | Thermistor |
| Response time | <10 sec @ 30 cc/min. flow, <3 min diffusion time |
| Response time t 63 | <30 s, without filter |
| Calculations | Dew point, wet bulb temperature |
| Current consumption | 40 mA (typical) |
| Parameters shown | CO2, relative humidity and temperature |
| Clock | Real time clock |
| Alarm functions | Adjustable for CO2 measurement |
| Housing | ABS |
| IP protection rating | IP30 |
| CE / EMC conform | 2004/108/EC |
| Maintenance | No maintenance (standard indoor application) |
| Dimensions | 76,7 x 41,8 x 233,9 mm |
| Weight | 290 g |
Product Additional Information
Product Manuals (2)
Data Sheets (1)
59100E_CO2-Measuring_Instruments.pdf
CE Declaration (1)
