Rotronic HydroLog: TL-1D SET
- Mfr. Part No. TL-1D-SET
- Warranty
- Manufacturer Rotronic
Price
Per unit SGD 175.0 (inclusive of GST)
Temperature Data Logger Set HygroLog TL-1D is a compact low cost data logger for temperature. The internal memory can store up to 32 000 data points and includes the HW4-Lite software. TL-1D-Set – Set comes with Cable AC0003 for connection of the logger to HW4-Lite
Product Details

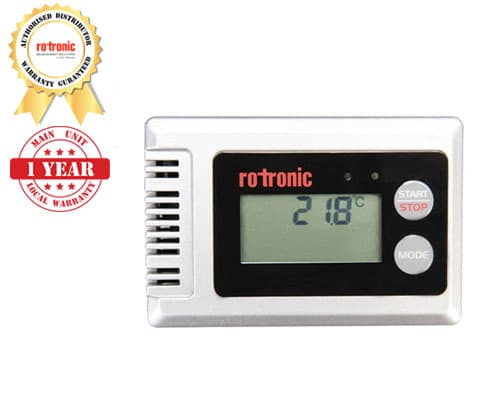

The TL1D is a compact low cost data logger for temperature. The internal memory can store up to 32 000 data points and includes the HW4-Lite software.
Features
- High measurement accuracy of ±0.3 °C
- Compact design with a high IP protection
- Large storage capacity: 64 000 data point memory
- Programmable start and stop time with the HW4 software
- MIN/MAX/AVG statistical function
- Includes HW4-lite programming and analysis software
- Clear LCD with visual alerts
- Appropriately long battery life (up to 3 years)
- Conforms to FDA 21 CFR Part 11 / GxP / GAMP 5 with HW4-P

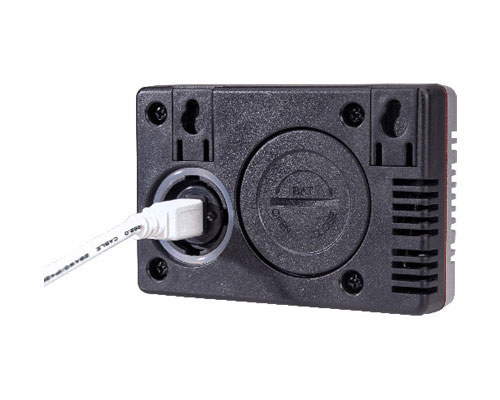

*TL-1D-Set – Set comes with Cable AC0003 for connection of the logger to HW4-Lite*
Product Specification
| Accuracy at 23 ±5 °C | ±0.3 °C |
|---|---|
| Range of application | -30…70 °C / 0…100 %RH / 300…1100 hPa |
| Power consumption | 1x CR2 battery |
| Battery lifetime | 3 years (at a logging interval of 1 h) |
| Temperature sensor | NTC |
| Display refresh rate | 5 sec. (Standard) (when logging same refresh rate as log interval) |
| Display type | LCD, 2 lines |
| LED indicator | 2 LEDs Right LED flashes green during data logging Left LED flashes red when alarm limits breached or low battery |
| Measurement interval | 30 s…24 h |
| Battery indicator | Yes |
| HW4 compatible | V3.4.1 and higher |
| Storage capacity | 32,000 data point memory (T) |
| Communication interfaces | Mini USB |
| IP protection rating | IP67 |
| FDA/GAMP compatibility | FDA 21 CFR Part 11 / GAMP 5 conform software HW4 |
| Dimensions | 90 x 60 x 23 mm |
| Weight | 85 g |
Product Additional Information
Product Manuals (1)
12.8000.2201_hl-1d_bl-1d_tl-1d_print_1.pdf
Data Sheets (1)
59040E_HL-1D_BL-1D_TL-1D_1.pdf
Release Notes (1)
releasenotes_bl-1d_hl-1d_tl-1d.pdf
