• True-rms technology improves accuracy in electrically noisy environments
• Measures AC/DC Voltage up to 1000 V AC/DC current resistance frequency capacitance temperature and duty cycle
• Low Z mode detects stray voltages
• Low pass filter accurately measures voltage on variable frequency drives
• Peak hold (crest) captures and holds the peak value of a voltage or current surge
• Non-contact voltage detection enhances safety
• Audible continuity quickly identifies shorts and opens
• Diode test to verify diode polarity
• Data hold freezes the reading on the display for further analysis
• MIN/MAX recording records min/max measurements over time to show voltage fluctuations
• Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
• Warning alerts against improper test leads connection
• Combines user friendly features such as auto power-off to conserve battery life low battery warning a “third hand” test probe holder built-in test leads storage a built-in flashlight and a Velcro strap to hang the meter
• Auto and manual-ranging delivers maximum flexibility
• Dual reading backlit LCD display with analog bar graph makes it easy to view results
• CAT IV 600 V/CAT III 1000 V safety rated for high voltage environments

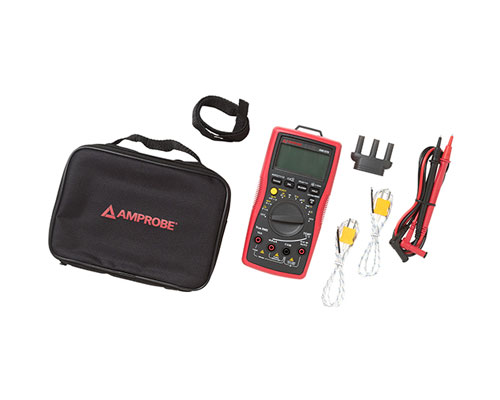

What’s Included

• AM-570
• 9V(6F22) x1 battery installed
• Test leads
• Type-K probe x 2
• Temperature adaptor
• Velcro strap
• Carrying case

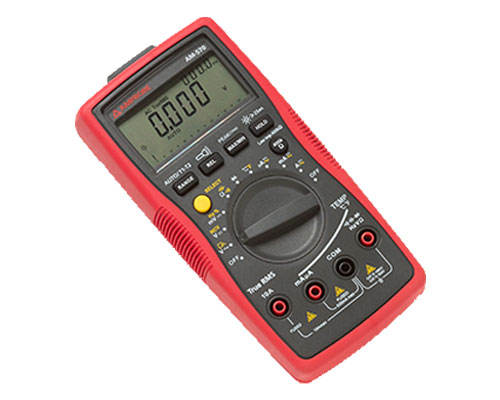

The Amprobe AM-570 autoranging digital multimeter is one of the best digital multimeters in its class. Designed for professional electricians who need to maintain service or troubleshoot advanced electrical systems in the most demanding environments the AM-570 high voltage multimeter is packed full of professional digital multimeter features. With True-rms accuracy for measuring voltage in noisy environments dual thermocouples for differential temperature measurements low impedance mode to detect stray voltage and a low pass filter to accurately measure the voltage on variable frequency drives the AM-570 takes care of quick go/no-go checks with a single tool.

			AM-500	AM-510	AM-520	AM-530	AM-560	AM-570
Multimeter Type			Auto-ranging	Com / Res	HVAC	Electrical	Adv. HVAC	Industrial
F U N C T I O N	Safety Rating	Safety	CAT III 600V	CAT III 600V	CAT III 600V	CAT III 600V	CAT IV 600V CAT III 1000	CAT IV 600V CAT III 1000
	Measure voltage in noisy environments	True rms				■		■
	Electrical panels AC outlets	AC Voltage (V)	600	600	600	600	1000	1000
	DC systems auto/marine batteries	DC Voltage (V)	600	600	600	600	1000	1000
	AC Current – electrical panels appliances	AC Current (A)	10	10	10	10	10	10
	DC Current-electronics DC motors	DC Current (A)	10	10	10	10	10	10
	Specified resistance and continuity	Resistance (MOhms)	20	40	40	40	60	60
	Flame sensors	Microamps	■	■	■	■	■	■
	Diodes in AC to DC converters	Diode Test	■	■	■	■	■	■
	Fuses lightbulbs wire connections	Continuity	■	■	■	■	■	■
	Household batteries	Battery test	■	■
	Motor startup or run capacitors	Capacitance		■	■	■	■	■
	Frequency verification	Frequency		■	■	■	■	■
	Non-contact voltage test	Non-contact voltage		■	■	■	■	■
	Electrical load-time on vs time off	Duty cycle		■			■	■
	Temp of air vents fuses transformers	Temperature inputs			1	1	2	2
F E A T U R E S	Automatically selects measurement range	Autoranging	■	■	■	■	■	■
	Manually select measurement range	Manual ranging		■	■	■	■	■
	Voltage on variable frequency drives	Low pass filter					■	■
	Detect stray voltages	Low Z						■
	Dimly lit areas	Built-in flashlight		■	■	■	■	■
D I S P L A Y	Meter resolution	LCD Counts	2 000	4 000	4 000	4 000	6 000	6 000
	Dimly lit areas	Backlight		■	■	■	■	■
	Monitoring fast changing signals	Bar graph			■	■	■	■
	Two relative measurements on one screen	Dual display					■	■
E V E N T S	Data memory	Data hold	■	■	■	■	■	■
	Difference between two measurements	Relative reading		■	■	■	■	■
	Max/min peak measurement	Max/min hold			■	■	■	■
	Specialized signal measurements	Peak hold (crest)					■	■
