EA20-SCS Humidity Standards

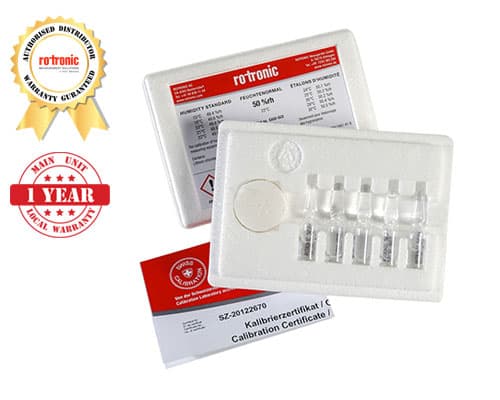

Rotronic SCS humidity standards supplied as packs of 5 hermetically sealed ampoules containing unsaturated salt solutions for on-site calibration and adjustment of Rotronic and third-party probes.
Price
Price on request
Authorized
Cal AvailableSCS Humidity Standards
These humidity standards from Rotronic are supplied in packs of 5 hermetically sealed ampoules of the same humidity level. Each ampoule is labelled with the humidity value and a serial number. With the exception of the 0 %rH standard, the ampoules contain an unsaturated saline solution. The 0% standard uses highly porous ceramic material (a molecular sieve). Each set includes an SCS certificate guaranteeing traceability and accuracy.
Applications
On-site calibration and adjustment of Rotronic probes (third-party probes also possible). With the humidity standards, a calibration device, and the HW4 software, calibration can be done easily at a PC. Without the software it is also possible to calibrate and adjust probes with the handheld instrument HP23-A.
Features Ampoules contain unsaturated salt solutions Inexpensive calibration on site Simple and safe use Unlimited lifetime Practical packs of 5 ampoules of the same humidity value (approx. 0.8 ml per ampoule)
Download Datasheet (PDF)Related Products
