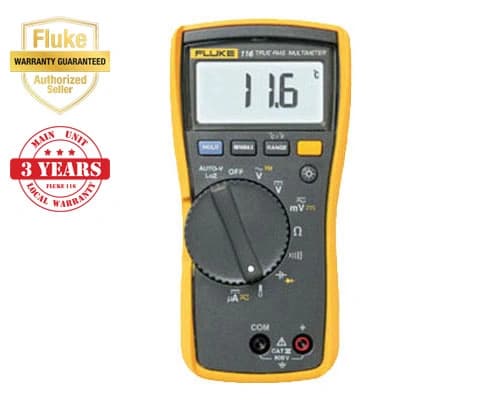

Fluke 116 Digital HVAC Multimeter

The Fluke 116 was specifically engineered for HVAC professionals requiring reliable troubleshooting capabilities. This multimeter includes a built-in thermometer measuring temperatures from -40°C to 400°C (-40°F to 752°F) and microamps functionality to test flame sensors effectively.

Beyond temperature measurement, the device measures resistance, continuity, frequency, and capacitance. It provides Min/Max/Average tracking to record signal fluctuations during diagnostics. The large white LED backlight enables clear visibility in poorly lit work environments.

The unit features low input impedance (LoZ) to prevent false readings from ghost voltage, a critical feature for HVAC troubleshooting. Its compact ergonomic design supports one-handed operation and integrates with optional ToolPak magnetic hangers for hands-free positioning.

Key features: - Built-in thermometer: -40°C to 400°C (-40°F to 752°F) - Microamps measurement for flame sensor testing - Low input impedance (LoZ) to prevent ghost voltage false readings - True-RMS AC voltage and current measurements - 6,000-count display with large white LED backlight - Min/Max/Average recording with elapsed time tracking - Measures resistance, continuity, diode, frequency, and capacitance - CAT III 600V safety rating

Included items: multimeter unit, silicone test leads, integrated temperature probe (80BK), holster with probe holders, 9V battery, and quick reference guide.
