Fluke 2052 Advanced Wire Tracer Kit

Built to Keep You Safe

The Fluke 2052 Advanced Wire Tracer accurately and safely troubleshoots energized and de-energized wires in residential, commercial and industrial environments up to CAT IV 600 V. This CAT rating offers the highest protection available on any wire tracer. It is designed to protect you from the most dangerous levels of transient overvoltage spikes up to 8,000 V that can occur in industrial and utility environments. This is especially important for scenarios you may encounter in environments like industrial plants, factories and hospitals where critical equipment cannot be taken offline.

Wire Tracing Customized for Your Application

Whether troubleshooting electrical wiring and equipment in residential homes, commercial buildings or high-voltage utility plants, the Fluke 2052 can find breaks or opens and shorts. Its different modes and functions give you the flexibility to troubleshoot a wide range of electrical wiring and circuitry problems you may encounter on the job.

Four Receiver Tracing Modes

The 2052-R Receiver detects the signal in wires and cables using two methods: passive tracing without the transmitter for non-contact voltage detection and active tracing with the transmitter for all other modes. The receiver's tip sensor can trace wires in corners, tight spaces and junction boxes.

Quick Scan mode for energized wire detection and visualization on the large color LCD Precision mode for more precise detection of a wire Breaker mode for easy breaker and fuse identification based on the highest recorded signal detected from the transmitter Non-Contact Voltage Detection mode to trace energized wires without the use of the transmitter

Three Transmitter Power Modes

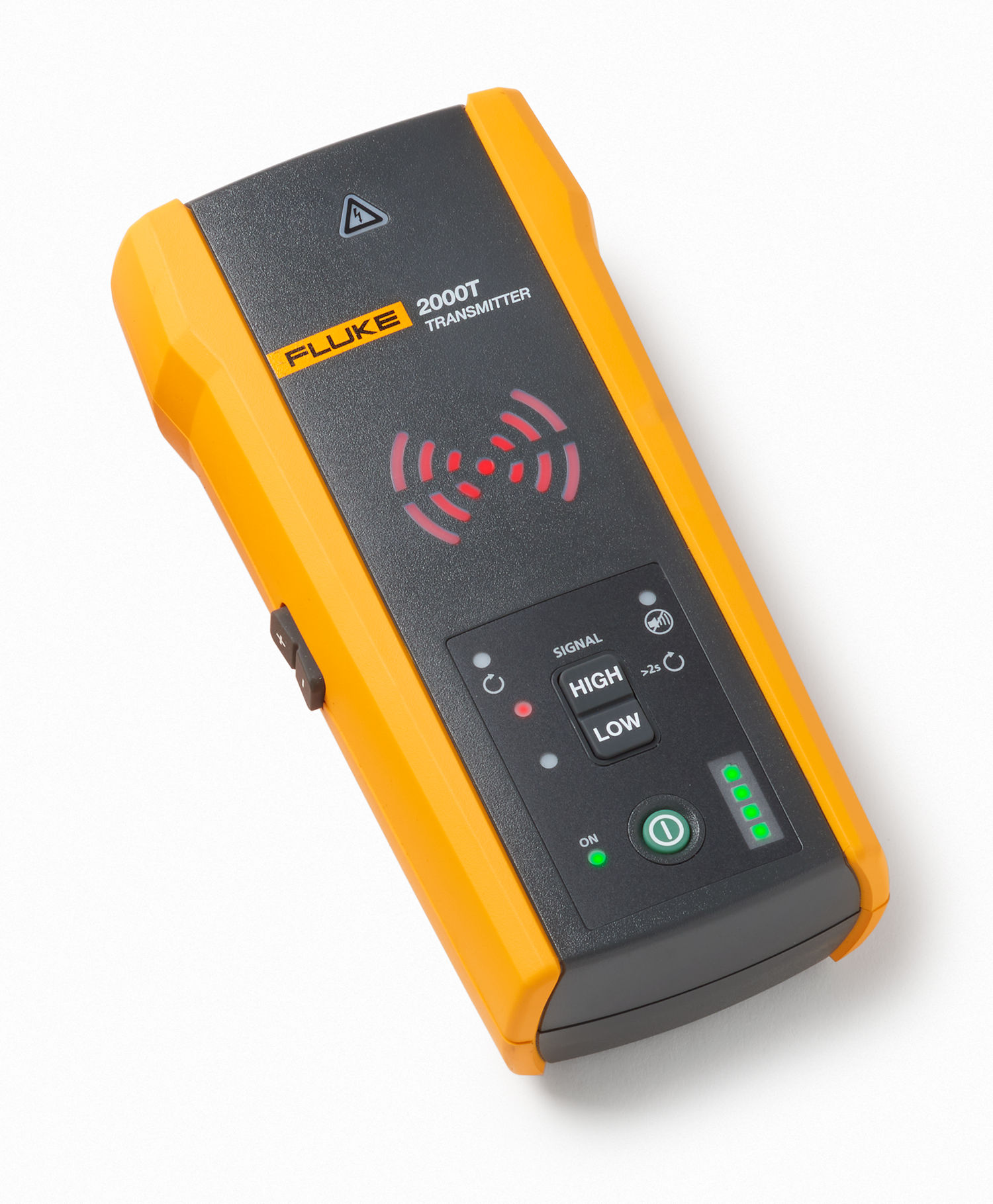

The 2000-T Transmitter works on energized and de-energized circuits up to CAT IV 600 V and features high, low and loop modes. These modes change the strength of the induced signal and can help provide more accurate results depending on the circuit you're tracing.

High mode for normal energized and de-energized circuits Low mode for precision tracing with a low signal to reduce coupling to nearby wires and metal objects Loop mode for closed loop de-energized circuits

Two Transmitter Output Frequencies

The 2000-T automatically senses whether the system is energized or de-energized and selects a 6 kHz or 33 kHz output frequency.

Eight Receiver Sensitivity Levels

More sensitivity levels mean more flexibility and accuracy when tracing.

Complete Kit

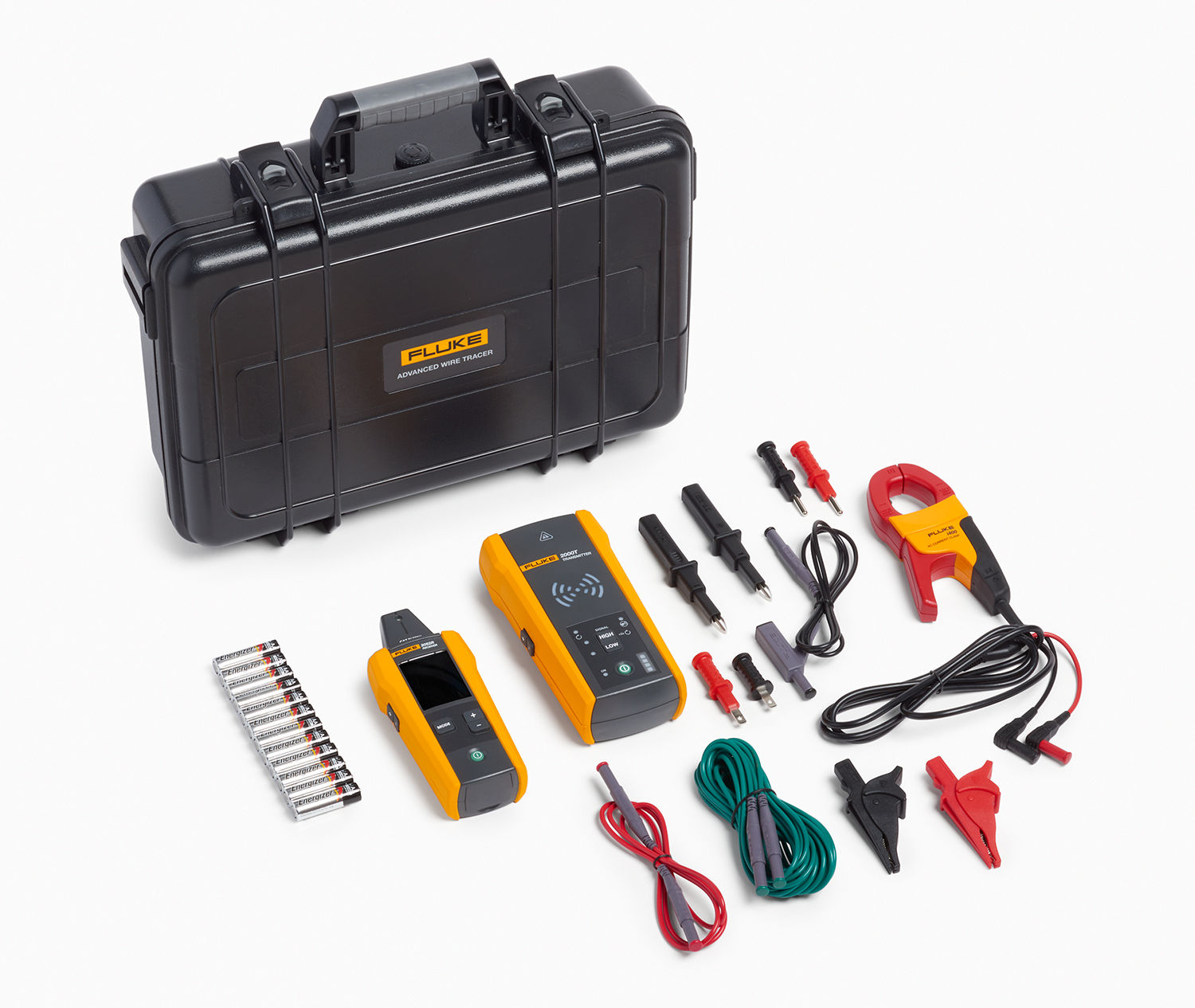

The Fluke 2052 Advanced Wire Tracer Kit conveniently comes with everything required to start tracing wires and circuits. The accessory kit includes test leads, test probes, blade and round outlet adapters, and alligator clips to connect the transmitter to electrical systems. Connecting the transmitter to a bare conductor with the included alligator clips and test leads will always provide the most accurate results. However, in situations where a direct connection to a bare conductor is not available, the included i400 Current Clamp can be used with the Loop mode to induce a boosted 6 kHz signal through the insulation. The kit also includes batteries and a hard carrying case.

What's in the box: Fluke 2052R Advanced Wire Tracer Receiver Fluke 2000T Advanced Wire Tracer Transmitter i400 AC Current Clamp Fluke 2000ACC Test Lead Accessory Kit for 2052/2062 Premium hard carrying case Batteries Quick reference guide
