Fluke 2062 Advanced Pro Wire Tracer Kit

Built to Keep You Safe

The Fluke 2062 Advanced Pro Wire Tracer accurately and safely troubleshoots energized and de-energized wires in residential, commercial and industrial environments up to CAT IV 600 V. Designed to protect from transient overvoltage spikes up to 8,000 V in industrial, utility, and critical-infrastructure environments.

Smarter Tracing Saves Time

The patented Smart Sensor locates and displays energized wires within walls, floors and ceilings on a high-resolution 3.5-inch TFT LCD color display. Embedded help screens make operation straightforward. The tip sensor provides audible tone detection while visualizing wire orientation.

Wire Tracing Customized for Your Application

Locates breaks, opens, and shorts in electrical wiring and circuitry. Different modes provide flexibility for residential, commercial, and high-voltage utility troubleshooting.

Four Receiver Tracing Modes

Smart Sensor mode for energized wire detection and LCD visualization Tip Sensor mode for precise wire detection Breaker mode for breaker and fuse identification Non-Contact Voltage Detection mode for tracing without the transmitter

Three Transmitter Power Modes

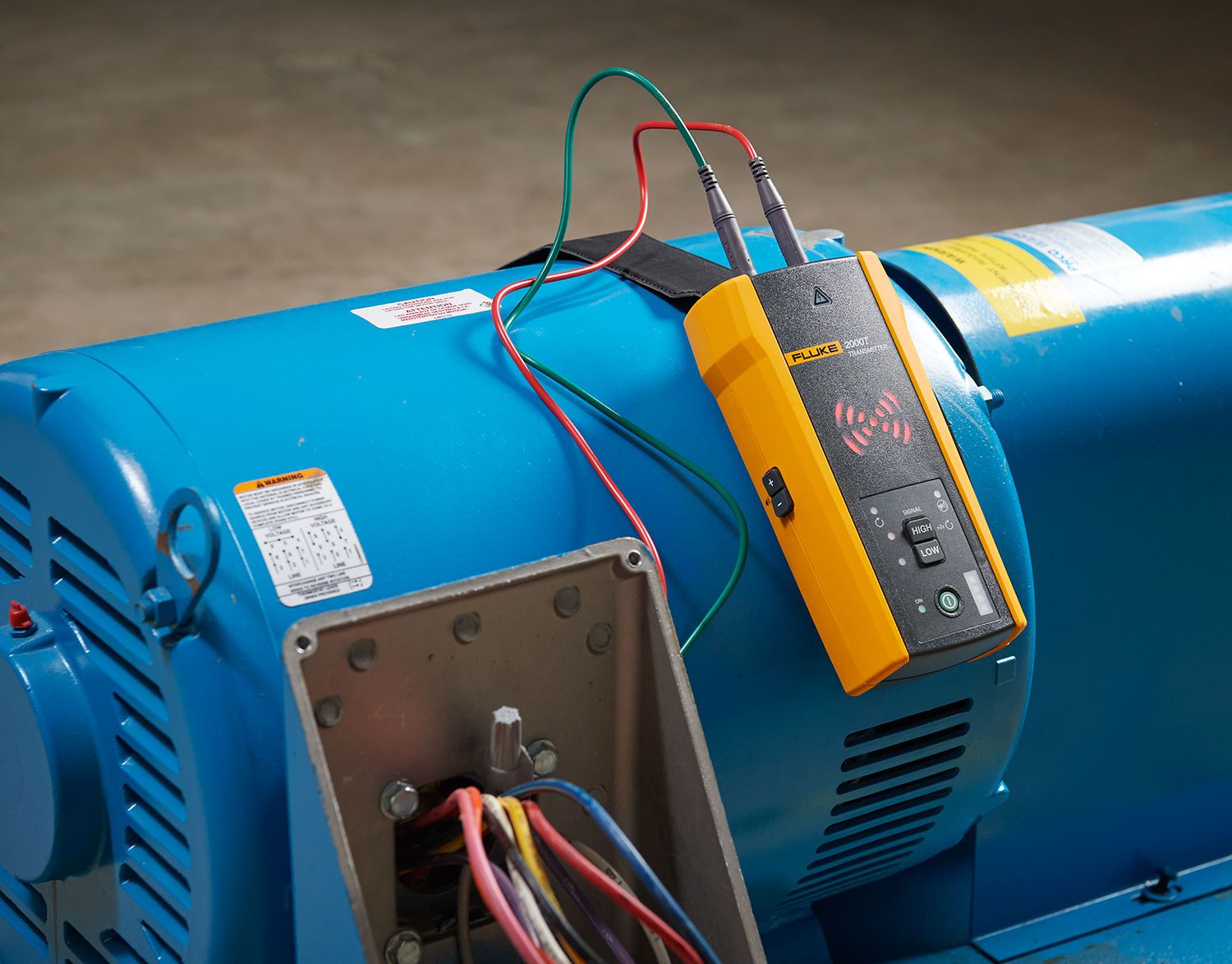

The 2000-T Transmitter operates on CAT IV 600 V circuits with high, low, and loop modes adjusting signal strength for accuracy.

Two Transmitter Output Frequencies

The 2000-T automatically selects 6 kHz or 33 kHz frequency based on circuit status.

Eight Receiver Sensitivity Levels

Multiple sensitivity settings provide flexibility and accuracy when tracing.

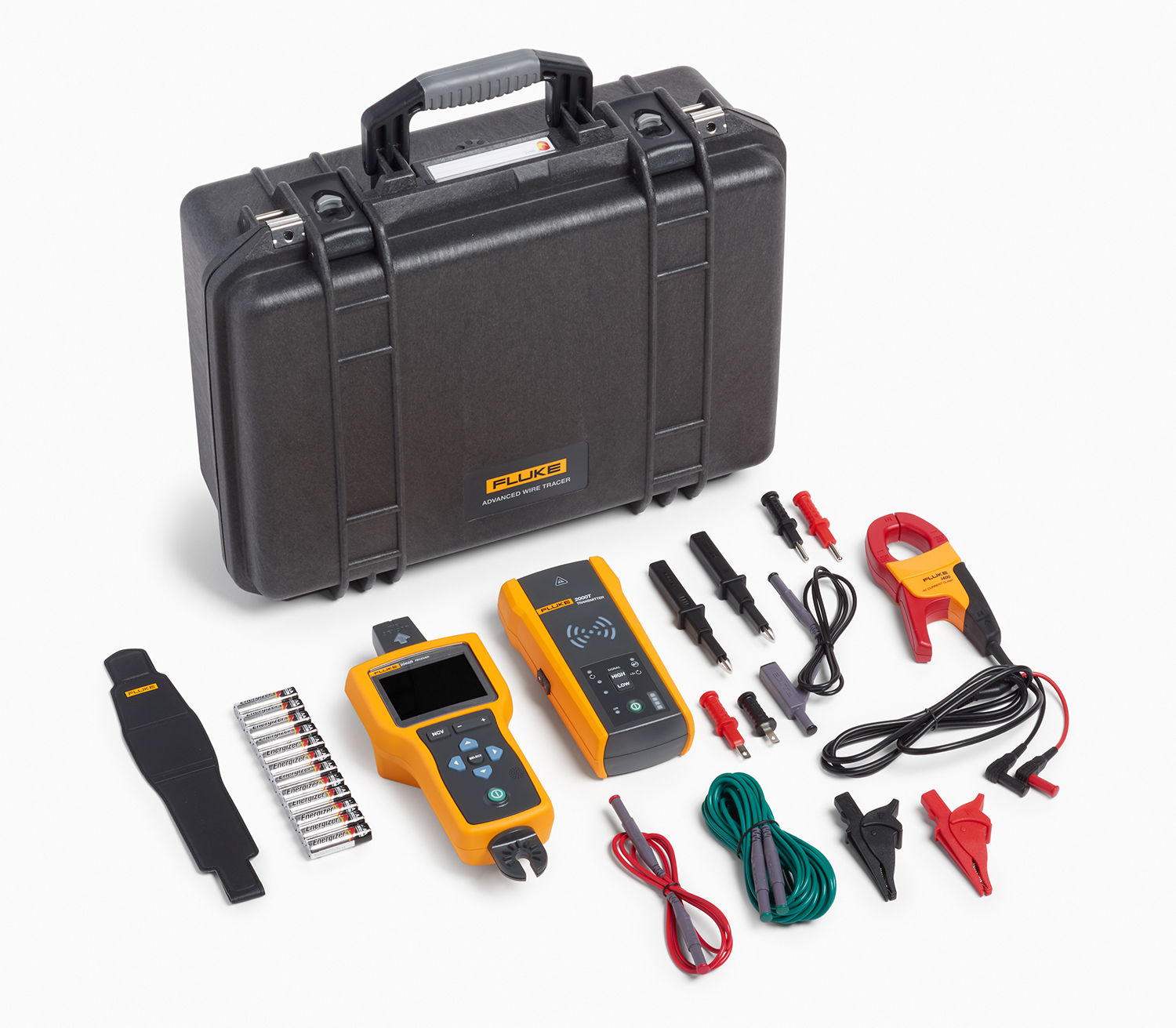

Complete Kit Contents: Fluke 2062R Advanced Pro Wire Tracer Receiver with Smart Sensor Fluke 2000T Advanced Wire Tracer Transmitter i400 AC Current Clamp Fluke 2000ACC Test Lead Accessory Kit Smart strap magnetic hanger Premium hard carrying case Batteries Quick reference guide
