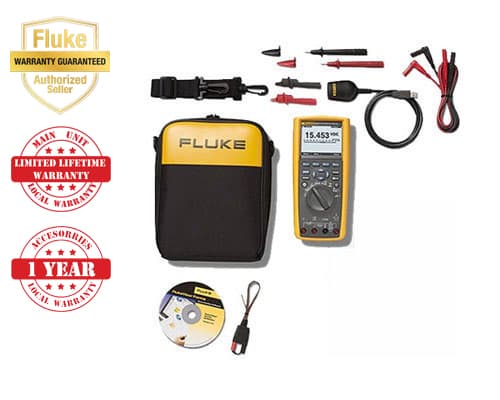

Fluke 289 FlukeView Forms Combo Kit

This combo kit pairs the Fluke 289 multimeter with FlukeView Forms software to enhance productivity in equipment monitoring and troubleshooting. The device features built-in data logging and TrendCapture functionality to track intermittent problems while allowing technicians to work on other tasks.

The software enables overlaying logged data from multiple meters or time periods to identify cause-and-effect relationships for condition monitoring. Data can be converted into professional graphs and tables for reporting or individual reading analysis.

Recent updates include compatibility with the Fluke Connect mobile app and optional wireless connectivity via the ir3000 FC infrared connector for sharing measurements on iOS or Android devices.

Key Features: Compatible with Fluke Connect mobile app and ShareLive video calling TrendCapture with 14x zoom capability for data analysis 50,000-count 1/4 VGA display with white backlight Logging capacity: up to 15,000 recorded events Two-terminal 50-ohm range with 1 milliohm resolution Low Pass filter for noisy environments LoZ Volts function for eliminating ghost voltages Peak capture at 250 microseconds 10A measurement capability (20A for 30 seconds) Real-time clock with automatic time stamping Relative mode for removing test lead resistance

Specifications: DC Volts Range: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V; Accuracy: 0.025% AC Volts Range: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V; Accuracy: 0.4% (True-RMS) DC Current Range: 500.00 uA to 10.000 A; Accuracy: 0.05% AC Current Range: 500.00 uA to 10.000 A; Accuracy: 0.6% (True-RMS) Temperature Range: -200.0 degrees C to 1350.0 degrees C; Accuracy: 1.0% Resistance Range: 50.000 ohm to 500.0 Mohm; Accuracy: 0.05% Capacitance Range: 1.000 nF to 100 mF; Accuracy: 1.0% Frequency Range: 99.999 Hz to 999.99 kHz; Accuracy: 0.005% Battery: 6 AA alkaline (NEDA 15A IECLR6); Life: 100 hours minimum, 200 hours in logging mode Operating Temperature: -20 degrees C to 55 degrees C Storage Temperature: -40 degrees C to 60 degrees C Relative Humidity: 0-90% (0-37 degrees C); 0-65% (37-45 degrees C); 0-45% (45-55 degrees C) Dimensions: 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) Weight: 870.9 g (28 oz) Logging Memory: Up to 15,000 readings True-RMS AC Bandwidth: 100 kHz Maximum Voltage to Ground: 1000 V
