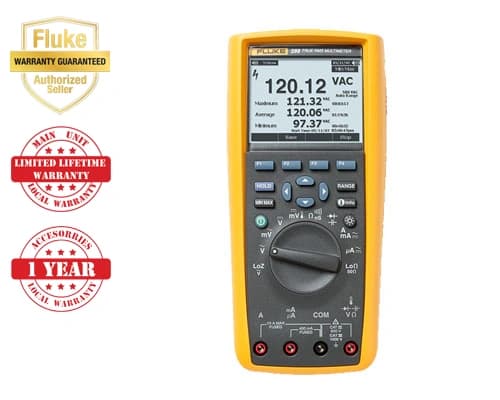

Fluke 289 True-RMS Industrial Logging Multimeter with TrendCapture

This multimeter addresses complex troubleshooting in electronics, plant automation, power distribution, and electro-mechanical equipment. It enables data logging and graphical review of up to 15,000 recorded events.

The device offers TrendCapture with 14x zoom capability for detailed data analysis without requiring a PC. Through optional ir3000 FC wireless connectivity, users can integrate with the Fluke Connect mobile app for remote monitoring and ShareLive team collaboration features.

Key Features: TrendCapture with graphical logging display 14x zoom functionality for trend analysis 50,000-count 1/4 VGA dot matrix display with white backlight Up to 15,000 recorded event storage Low impedance (LoZ) volts function for eliminating ghost voltages Low-pass filter for noisy environments True-RMS AC voltage and current measurements Peak capture at 250 microseconds for transient recording Optional Fluke Connect wireless capability via ir3000 FC Real-time clock with automatic time stamping Relative measurement mode for removing test lead resistance

Specifications: DC Volts Range: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V; Accuracy: 0.025% AC Volts Range: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V; Accuracy: 0.4% (True-RMS) DC Current Range: 500.00 uA to 10.000 A; Accuracy: 0.05% AC Current Range: 500.00 uA to 10.000 A; Accuracy: 0.6% (True-RMS) Temperature Range: -200.0 degrees C to 1350.0 degrees C; Accuracy: 1.0% Resistance Range: 50.000 ohm to 500.0 Mohm; Accuracy: 0.05% Capacitance Range: 1.000 nF to 100 mF; Accuracy: 1.0% Frequency Range: 99.999 Hz to 999.99 kHz; Accuracy: 0.005% Display: 50,000-count 1/4 VGA dot matrix Logging Memory: Up to 15,000 readings Battery: 6 AA alkaline; Life: 100 hours standard, 200 hours in logging mode Operating Temperature: -20 degrees C to 55 degrees C Dimensions: 22.2 x 10.2 x 6 cm Weight: 870.9 g Maximum Voltage: 1000 V EMC Standards: EN61326-1
