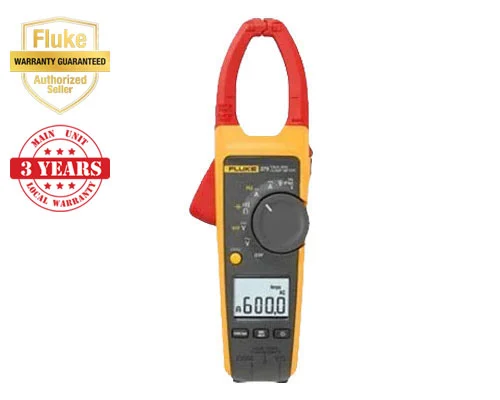

Fluke 375 True-RMS AC/DC Clamp Meter
True RMS AC voltage and current measurements — the Fluke 375 Clamp Meter can read up to 600 V and 600 A in both AC and DC modes and is capable of frequency measurement up to 500 Hz.
Price (excl. GST)
SGD 799.00
Qty
Authorized
Cal AvailableBe ready for anything with this True RMS clamp meter featuring both AC and DC measurement capabilities.
Key Features: iFlex flexible current probe expands measurement range to 2500 A AC with increased display flexibility CAT IV 600 V CAT III 1000 V safety rating True RMS AC voltage and current for accurate measurements on non-linear signals 500 mV DC measurement range to interface with other accessories Integrated low pass filter and advanced signal processing for use in noisy electrical environments Proprietary inrush measurement technology to filter noise and capture motor starting current Ergonomic design fits in hand and works while wearing protective equipment Large easy-to-read backlight display with automatic range setting Three-year warranty included Soft carrying case provided
AC Current via Jaw: Range 600.0 A, Resolution 0.1 A, Accuracy 2% +5 digits (10-100 Hz); 2.5% +5 digits (100-500 Hz), Crest Factor 3 @ 500 A; 2.5 @ 600 A AC Current via Flexible Probe: Range 2500 A, Accuracy 3% +5 digits (5-500 Hz) DC Current: Range 600.0 A, Resolution 0.1 A, Accuracy 2% +5 digits AC Voltage: Range 1000 V, Resolution 0.1 V (≤600V); 1 V (≤1000V), Accuracy 1.5% +5 digits (20-500 Hz) DC Voltage: Range 1000 V, Accuracy 1% +5 digits mV DC: Range 500.0 mV, Accuracy 1% +5 digits Frequency: Range 5.0 Hz to 500.0 Hz, Accuracy 0.5% +5 digits Resistance: Range 60 kΩ, Accuracy 1% +5 digits Capacitance: Range 1000 μF, Accuracy 1% +4 digits
Mechanical Specifications: Maximum voltage between any terminal and earth ground: 1000 V Batteries: 2 AA, NEDA 15A, IEC LR6 Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Operating humidity (non-condensing): ≤90% RH (10-30°C); ≤75% RH (30-40°C) Operating altitude: 3000 m Storage altitude: 12,000 m Size (L x W x H): 249 x 85 x 45 mm Weight: 395 g Jaw opening: 34 mm Flexible current probe diameter: 7.5 mm Flexible current probe cable length: 1.8 m IP rating: IEC 60529 IP30 (non-operating)
Safety & Compliance: IEC 61010-1 Pollution Degree 2; IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V; IEC 61326-1 Portable Electromagnetic Environment
Download Datasheet (PDF)Related Products
