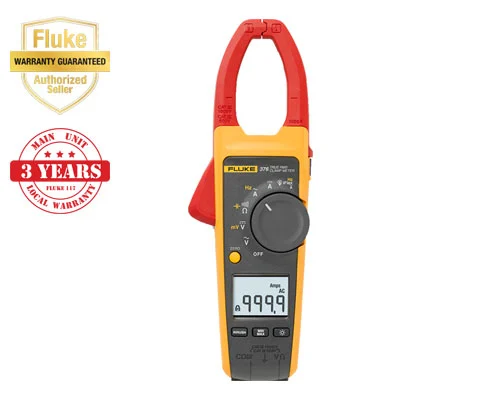

Fluke 376 FC True-RMS Clamp Meter

The Fluke 376 FC True-rms Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. Part of the Fluke Connect family of wireless test tools, it enables logging, trending, and monitoring measurements while remaining safely away from the arc flash zone through Bluetooth connectivity.

Find the cause of difficult problems: Uses integrated low-pass filter for accurate measurements of non-linear signals such as adjustable speed drives, electronic ballasts, and other non-linear loads. Proprietary inrush measurement technology filters out noise and captures motor starting current exactly as the circuit protection sees it.

Measurement capabilities: Voltage to 1000 V AC or DC, resistance to 60 kΩ with continuity detection, min/max/average and inrush recording to capture variations automatically, 500 mV DC measurement range to interface with other accessories, 1000 μF capacitance measurement.

Work safely and conveniently: Carries CAT III 1000 V / CAT IV 600 V safety rating for highest protection. Included iFlex flexible current probe provides easier access to large conductors in tight spaces, expands measurement range to 2500 A AC, allows frequency measurement to 500 Hz with body jaw and iFlex.

Key features: Measures AC/DC current with included iFlex current probe VFD low pass filter for accurate measurements of non-linear signals Remotely log, trend and monitor to pinpoint intermittent faults Inrush measurement to filter out noise and capture starting current Bluetooth wireless connectivity (Fluke Connect) Min/max/average recording CAT IV 600 V / CAT III 1000 V safety rated

Includes: Fluke 376 FC True-RMS Clamp Meter, 18-inch iFlex Flexible Current Probe, TPAK magnetic hanging strap, TL75 Test Leads, two AA batteries (installed), soft carrying case.

AC Current via Jaw: Range 999.9 A, Resolution 0.1 A, Accuracy 2% ±5 digits (10-100 Hz); 2.5% ±5 digits (100-500 Hz), Crest Factor 3 @ 500 A; 2.5 @ 600 A; add 2% for C.F. >2 AC Current via Flexible Current Probe: Range 2500 A, Resolution 0.1 A (≤600 A) / 1 A (≤2500 A), Accuracy 3% ±5 digits (5-500 Hz), Crest Factor 3.0 at 1100 A; 2.5 at 1400 A; 1.42 at 2500 A DC Current: Range 999.9 A, Resolution 0.1 A, Accuracy 2% ±5 digits AC Voltage: Range 1000 V, Resolution 0.1 V (≤600 V) / 1 V (≤1000 V), Accuracy 1% ±5 digits (20-500 Hz) DC Voltage: Range 1000 V, Resolution 0.1 V (≤600 V) / 1 V (≤1000 V), Accuracy 1% ±5 digits mV DC: Range 500.0 mV, Resolution 0.1 mV, Accuracy 1% ±5 digits Frequency via Jaw: Range 5.0-500.0 Hz, Resolution 0.1 Hz, Accuracy 0.5% ±5 digits Frequency via Flexible Current Probe: Range 5.0-500.0 Hz, Resolution 0.1 Hz, Accuracy 0.5% ±5 digits Resistance: Range 60 kΩ, Resolution 0.1 Ω (≤600 Ω) / 1 Ω (≤6000 Ω) / 10 Ω (≤60 kΩ), Accuracy 1% ±5 digits Capacitance: Range 1000 μF, Resolution 0.1 μF (≤100 μF) / 1 μF (≤1000 μF), Accuracy 1% ±4 digits
