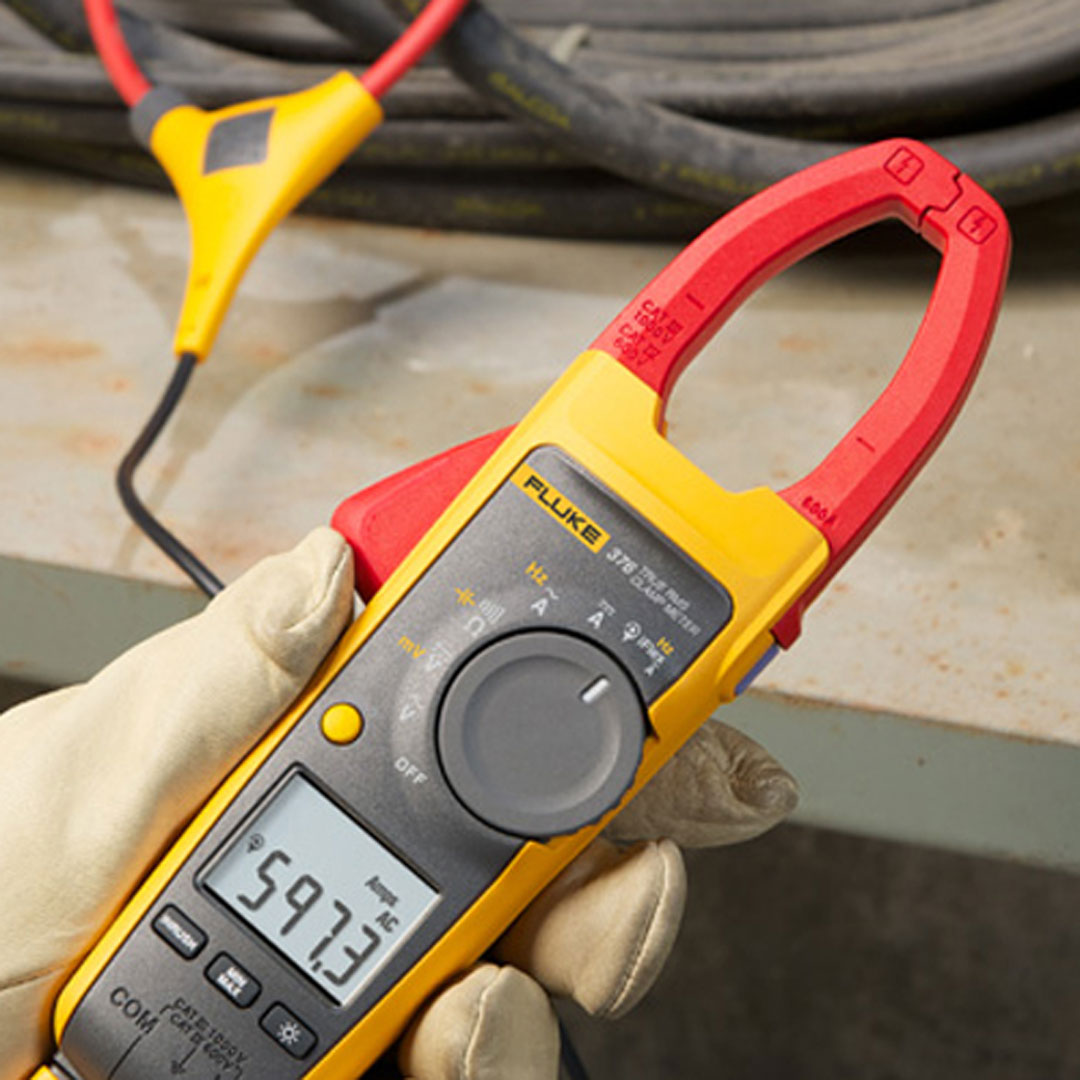

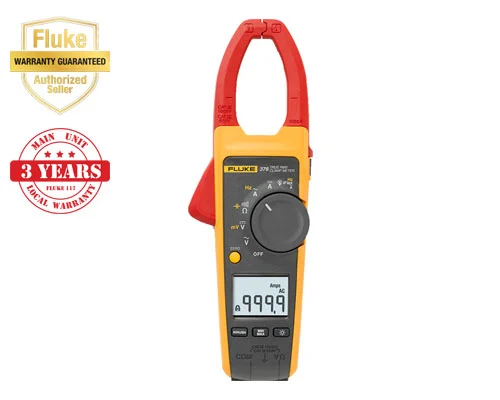

Fluke 376 True-rms AC/DC Clamp Meter with iFlex

The Fluke 376 is a True RMS AC/DC clamp meter designed for measuring current and voltage in electrical systems. It features the iFlex flexible current probe that expands measurement capabilities to 2500 A AC, allowing measurements around conductors of various sizes.

Key capabilities include True RMS voltage and current measurements for accurate readings on non-linear signals, with measurement ranges up to 1000 V and 999.9 A in both AC and DC modes. The meter includes min/max/average recording and inrush measurement technology to capture motor starting currents and circuit variations automatically.

Key Features: True RMS AC and DC voltage and current measurements iFlex flexible current probe expands range to 2500 A AC Integrated low pass filter and advanced signal processing for stable readings in noisy electrical environments Proprietary inrush measurement technology to capture motor starting current Min/max/average recording Frequency, resistance, and capacitance measurement Large backlit display with automatic range selection Ergonomic design suitable for use with protective equipment CAT IV 600 V and CAT III 1000 V safety rated Three-year warranty Soft carrying case and 2 AA batteries included

AC Current via Jaw: Range 999.9 A, Resolution 0.1 A, Accuracy 2% ±5 digits (10-100 Hz); 2.5% ±5 digits (100-500 Hz), Crest Factor 3 @ 500 A; 2.5 @ 600 A; add 2% for C.F. >2 AC Current via Flexible Current Probe: Range 2500 A, Resolution 0.1 A (≤600 A) / 1 A (≤2500 A), Accuracy 3% ±5 digits (5-500 Hz), Crest Factor 3.0 at 1100 A; 2.5 at 1400 A; 1.42 at 2500 A DC Current: Range 999.9 A, Resolution 0.1 A, Accuracy 2% ±5 digits AC Voltage: Range 1000 V, Resolution 0.1 V (≤600 V) / 1 V (≤1000 V), Accuracy 1% ±5 digits (20-500 Hz) DC Voltage: Range 1000 V, Resolution 0.1 V (≤600 V) / 1 V (≤1000 V), Accuracy 1% ±5 digits mV DC: Range 500.0 mV, Resolution 0.1 mV, Accuracy 1% ±5 digits Frequency via Jaw: Range 5.0-500.0 Hz, Resolution 0.1 Hz, Accuracy 0.5% ±5 digits, Trigger 5-10 Hz ≥10 A; 10-100 Hz ≥5 A; 100-500 Hz ≥10 A Frequency via Flexible Current Probe: Range 5.0-500.0 Hz, Resolution 0.1 Hz, Accuracy 0.5% ±5 digits, Trigger 5-20 Hz ≥25 A; 20-100 Hz ≥20 A; 100-500 Hz ≥25 A Resistance: Range 60 kΩ, Resolution 0.1 Ω (≤600 Ω) / 1 Ω (≤6 kΩ) / 10 Ω (≤60 kΩ), Accuracy 1% ±5 digits Capacitance: Range 1000 μF, Resolution 0.1 μF (≤100 μF) / 1 μF (≤1000 μF), Accuracy 1% ±4 digits

Mechanical Specifications: Maximum voltage to earth ground: 1000 V Batteries: 2 AA, NEDA 15A, IEC LR6 Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Operating humidity: ≤90% RH (10-30°C); ≤75% RH (30-40°C); ≤45% RH (40-50°C) non-condensing Operating altitude: 2000 m Storage altitude: 12,000 m Size (L x W x H): 249 x 85 x 45 mm Weight: 395 g Jaw opening: 34 mm Flexible current probe diameter: 7.5 mm Flexible current probe cable length: 1.8 m IP rating: IP30 (non-operating) Safety: IEC 61010-1, CAT III 1000 V / CAT IV 600 V
