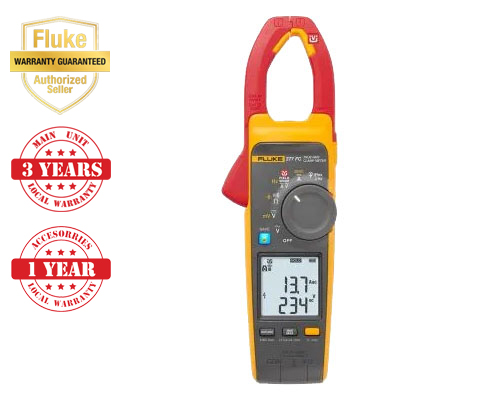

Fluke 377 Non-Contact Voltage True-RMS AC/DC Clamp Meter with iFlex

The Fluke 377 true-rms clamp meter uses FieldSense technology for faster, safer testing without contacting live conductors. Measure accurate voltage and current through the clamp jaw by clipping the black test lead to electrical ground and positioning the jaw around the conductor.

Key Features: Voltage and current measurements with FieldSense technology Measure extremely high current up to 2500 A with included iFlex flexible current probe Complete 3-phase voltage and current tests in three quick steps Full set of phase-to-ground and phase-to-phase values calculated and displayed Dual readout display with green indicator for stable measurements Visual Continuity with bright green screen for easy detection in noisy work areas Includes iFlex probe for access to large conductors in tight spaces

Electrical Specifications: AC Current (Jaw): 0-999.9 A, 0.1 A resolution, 2% ±5 digits accuracy AC Current (Flexible Probe): 0-2500 A, 1 A resolution, 3% ±5 digits accuracy DC Current: 0-999.9 A, 0.1 A resolution, 2% ±5 digits accuracy AC Voltage (FieldSense): 0-1000 V, 1 V resolution, 3-5% ±5 digits accuracy AC Voltage (Test Leads): 0-1000 V, 1 V resolution, 1% ±5 digits accuracy DC Voltage: 0-1000 V, 1 V resolution, 1% ±5 digits accuracy Frequency: 5-500 Hz, 0.1 Hz resolution Resistance: 60 Ω to 60 kΩ ranges Capacitance: 0-1000 μF

Environmental: Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 60°C IP Rating: IP30 (jaw closed) Operating Altitude: 2000 m max

Safety Ratings: IEC 61010-1, IEC 61010-2-032, IEC 61010-2-033 (CAT III 1000V / CAT IV 600V)
