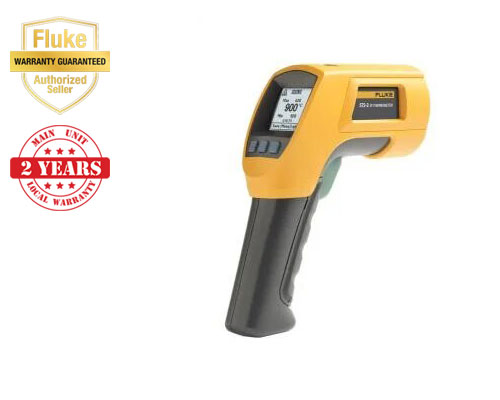

Fluke 572-2 High Temperature Infrared Thermometer

The Fluke 572-2 High-Temperature Infrared Thermometer is designed for high-temperature industrial environments across power utility, metal refining, smelting, glass, cement, and petrochemical sectors. It offers rugged performance and accuracy backed by Fluke's trusted test tool reputation.

The device features a simple three-button on-screen menu interface that streamlines operation. Users can adjust emissivity, start data logging, and control alarms with minimal button presses. The 60:1 distance-to-spot ratio with dual laser sighting enables quick and accurate targeting of small objects from considerable distances.

Key features include: Audible and visible alarms for rapid detection of temperatures outside specified limits Storage capacity for up to 99 data sets for review and analysis Two AA battery power Bright backlit display showing infrared and thermocouple temperatures simultaneously Compatibility with standard mini-connector K-type thermocouples 20-second last reading hold functionality

The thermometer measures temperatures from -30°C to 900°C (-22°F to 1652°F). It displays temperature plus MAX, MIN, DIF, and AVG readings. Emissivity is user-selectable with adjustable digital settings from 0.10 to 1.00 and a built-in table of common materials. The device includes a user-selectable multi-language interface.

Infrared temperature range: -30°C to 900°C (-22°F to 1652°F). IR accuracy (≥0°C): ±1°C or ±1% of reading, whichever is greater. IR accuracy (-10°C to <0°C): ±2°C. IR accuracy (<-10°C): ±3°C. IR repeatability: ±0.5% of reading or ±0.5°C, whichever is greater. Distance-to-spot ratio: 60:1 at 90% energy. Minimum spot size: 19 mm. Spectral response: 8 μm to 14 μm. Response time (95%): <500 ms. Emissivity: digitally adjustable 0.10 to 1.00 by 0.01 or via material table.

Contact measurements (K-type thermocouple) range: -270°C to 1372°C (-454°F to 2501°F). K-type accuracy (≥-40°C): ±1% or 1°C, whichever is greater. Bead probe measurement range: -40°C to 260°C (-40°F to 500°F). Cable length: 1 m.

Data storage: 99 points. Display: dot matrix 98 x 96 pixels with function menus. Communication: USB 2.0. Trigger lock: Yes. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C. Relative humidity: 10% to 90% RH non-condensing up to 30°C. Operating altitude: 2000 meters. Weight: 0.322 kg. Power: 2 AA batteries. Battery life: 8 hours (laser and backlight on); 100 hours (laser and backlight off). Safety/compliance: IEC 60825-1, FDA Laser Class II, IEC 61326-1, CE Compliant.
