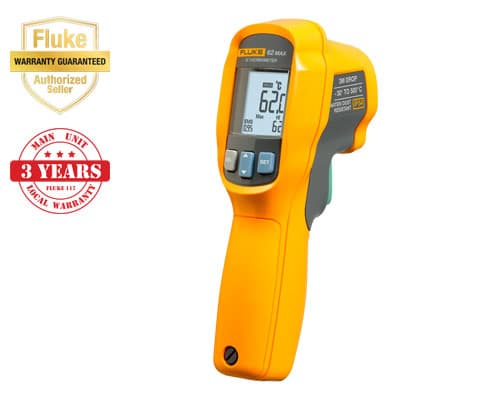

Fluke 62 MAX Infrared Thermometer

The Fluke 62 MAX Infrared Thermometer delivers single-laser targeting accuracy. This device provides many features of the Fluke 62 MAX+ but includes a single laser and 10:1 distance to spot ratio for precise measurements.

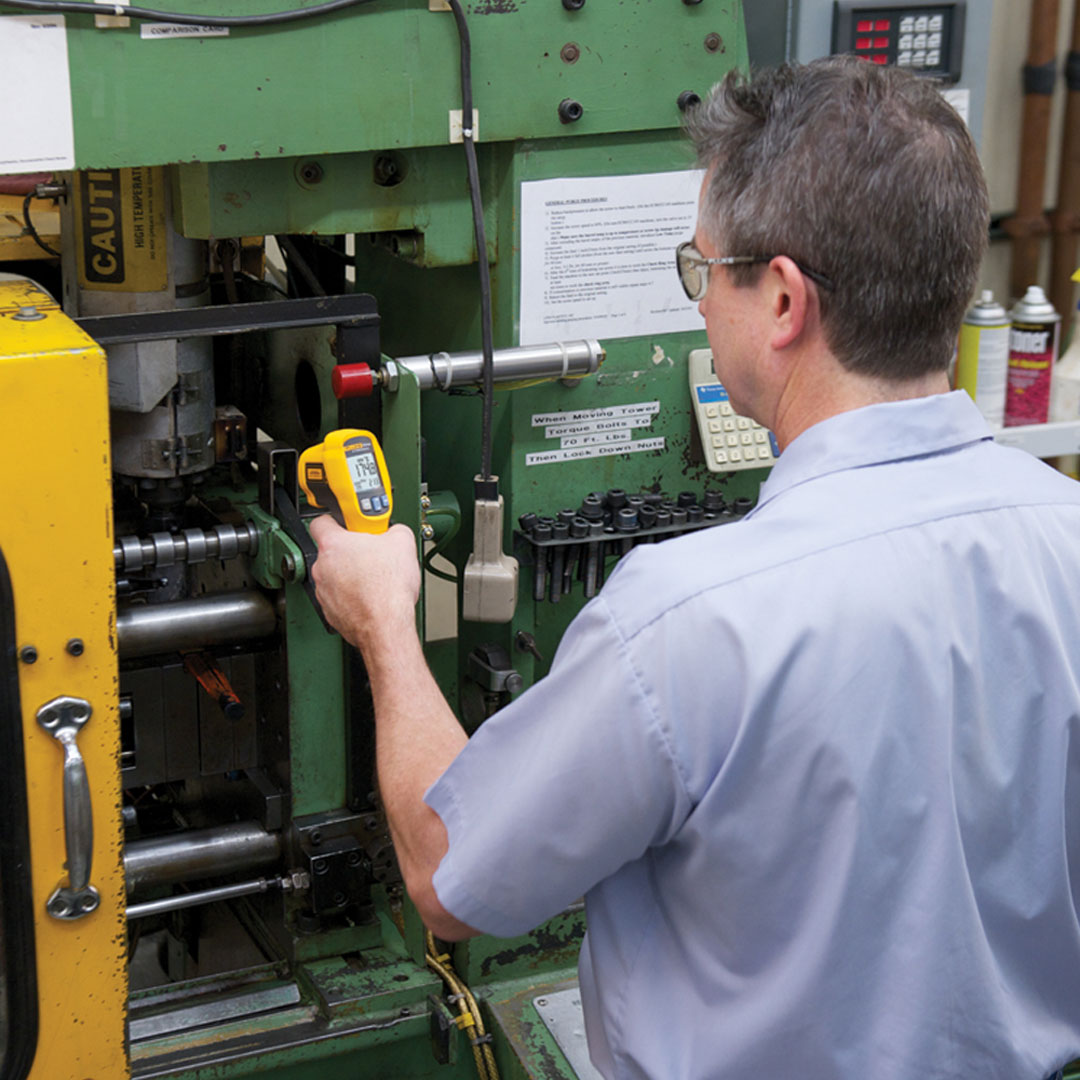

Applications include measuring temperatures on transformers, motors, pumps, panels, breakers, compressors, duct steam lines, valves, and vents. The unit is small, lightweight, and extremely easy to use. The single laser helps pinpoint the target for accurate readings and makes measuring temperatures in hard-to-reach areas simpler.

With IP54 rating for dust and water resistance, the Fluke 62 MAX delivers accurate, repeatable temperature measurements in industrial sites regardless of weather conditions. The rugged design withstands a 3-meter drop.

Key features include: High and low alarms for rapid detection of out-of-limit temperatures AA battery power with 10 hours of runtime Large backlit display for visibility in dark areas 3-year warranty on main unit Min/Max/Avg/Dif readings showing minimum, maximum, average temperature, or the difference between two measurements Compact form factor clips to tool belts or fits easily in toolboxes

Temperature range: -30°C to 500°C (-22°F to 932°F). Accuracy: ±1.5°C or ±1.5% of reading, whichever is greater; -10°C to 0°C: ±2.0; -30°C to -10°C: ±3.0. Response time (95%): <500 ms. Display resolution: 0.1°C (0.2°F). Repeatability: ±0.8% of reading or <±1.0°C (2°F), whichever is greater. Spectral response: 8 to 14 microns. Emissivity: 0.10 to 1.00. Optical resolution: 10:1 at 90% energy.

Weight: 255 g (8.99 oz). Size: 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in). Operating temperature: 0°C to 50°C (32°F to 122°F). Storage temperature: -20°C to 60°C (-4°F to 140°F) without battery. Operating humidity: 10% to 90% RH non-condensing at 30°C. Operating altitude: 2000 meters. Storage altitude: 12,000 meters. IP rating: IP54 per IEC 60529. Drop test: 3 meters. Power: AA battery. Battery life: 10 hours with laser and backlight on. Vibration and shock: IEC 68-2-6 2.5 g, 10 to 200 Hz; IEC 68-2-27, 50 g, 11 ms. Electromagnetic compliance: IEC 61326-1. Safety: IEC 61010-1 Pollution degree 2; IEC 60825-1 Class 2.
