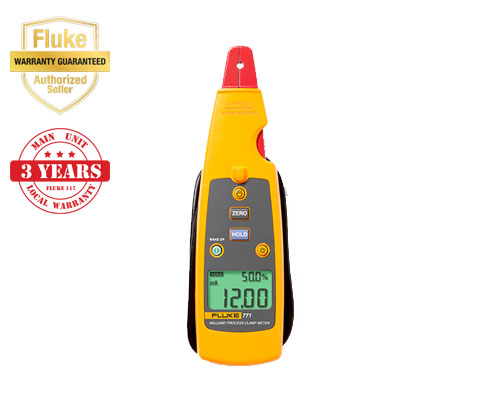

Fluke 771 Milliamp Process Clamp Meter

The Fluke 771 is a milliamp clamp meter designed for measuring 4-20 mA signals in process and automation equipment without interrupting the loop. This capability allows technicians to troubleshoot systems without taking them offline, saving downtime and costs.

Key Features: - Measures 4 to 20 mA signals without breaking the loop - Best in class 0.2% accuracy - Delivers 0.01 mA resolution and sensitivity - Measures mA signals for PLC and control system analog I/O - Detachable clamp for measurements in tight locations - Dual backlit display showing both mA measurement and percent of 4-20 mA span - Built-in LED spotlight for illuminating wires in dark enclosures - Hold function to capture and display changing measurements - Can measure 10 to 50 mA signals in older control systems using the 99.9 mA range

Specifications: - Maximum conductor diameter: 4.5 mm - Operating temperature: -10 to 50°C - Storage temperature: -25 to 60°C - Operating humidity: <90% @ <30°C, <75% @ 30-55°C - IP rating: IP 40 - Dimensions: 59 x 38 x 212 mm - Weight: 260 g - Power: 2 AA 1.5V alkaline batteries, 40 hours typical life - Accuracy (0-20.99 mA): 0.2% + 2 counts - Accuracy (21-100 mA): 1% + 5 counts

Includes soft carrying case and quick reference guide.
