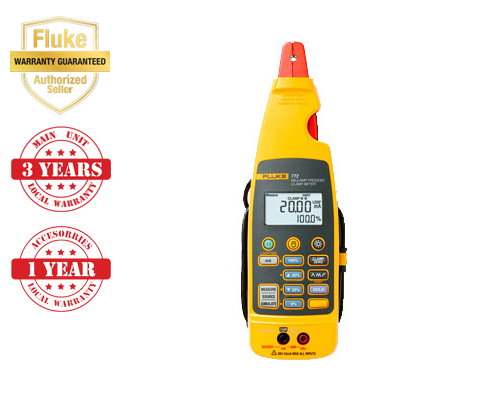

Fluke 772 Milliamp Clamp Meters

The Fluke 772 Milliamp Clamp Loop Meter measures, sources and simulates 4-20 mA signals for testing control system I/O or IPs. It enables testing of 4-20 mA signals five times faster than traditional DMMs without breaking the loop, allowing troubleshooting of live devices without powering down.

Key Features: - Loop meter that measures 4 to 20 mA signals without breaking the loop - Best in class 0.2% accuracy - Simultaneously measures the mA signal with the clamp and sources a mA signal - Delivers 0.01 mA resolution and sensitivity - Measures mA signals for PLC and control system analog I/O - Simulates 4-20 mA signals for testing control system I/O - Sources 4 to 20 mA signals for testing control system I/O or I/Ps - Includes simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters - Features detachable clamp with extension cable for measurements in tight locations - Captures and displays changing measurements with Hold function - Offers mA output linear ramp or 25% step output - Extends battery life with auto-off and backlight timeout - Dual backlit display with both mA measurement and percent of 4 to 20 mA span - Measurement Spotlight to illuminate hard to see wires in dark enclosures - Measures 10 to 50 mA signals in older control systems using the 99.9 mA range - Automatically changes the 4 to 20 mA output for remote testing

Operating Conditions: - Operating temperature: -10 to 50°C - Storage temperature: -25 to 60°C - Operating humidity: <90% @ <30°C, <75% @ 30 to 55°C - Operating altitude: 0 to 2000 m - IP rating: IP 40

Includes TL75 test leads, AC72 detachable clip, TL 940 mini hook test leads, 4 AA alkaline batteries, soft carrying case, magnetic hanging strap, quick reference guide, and 3-year warranty.
