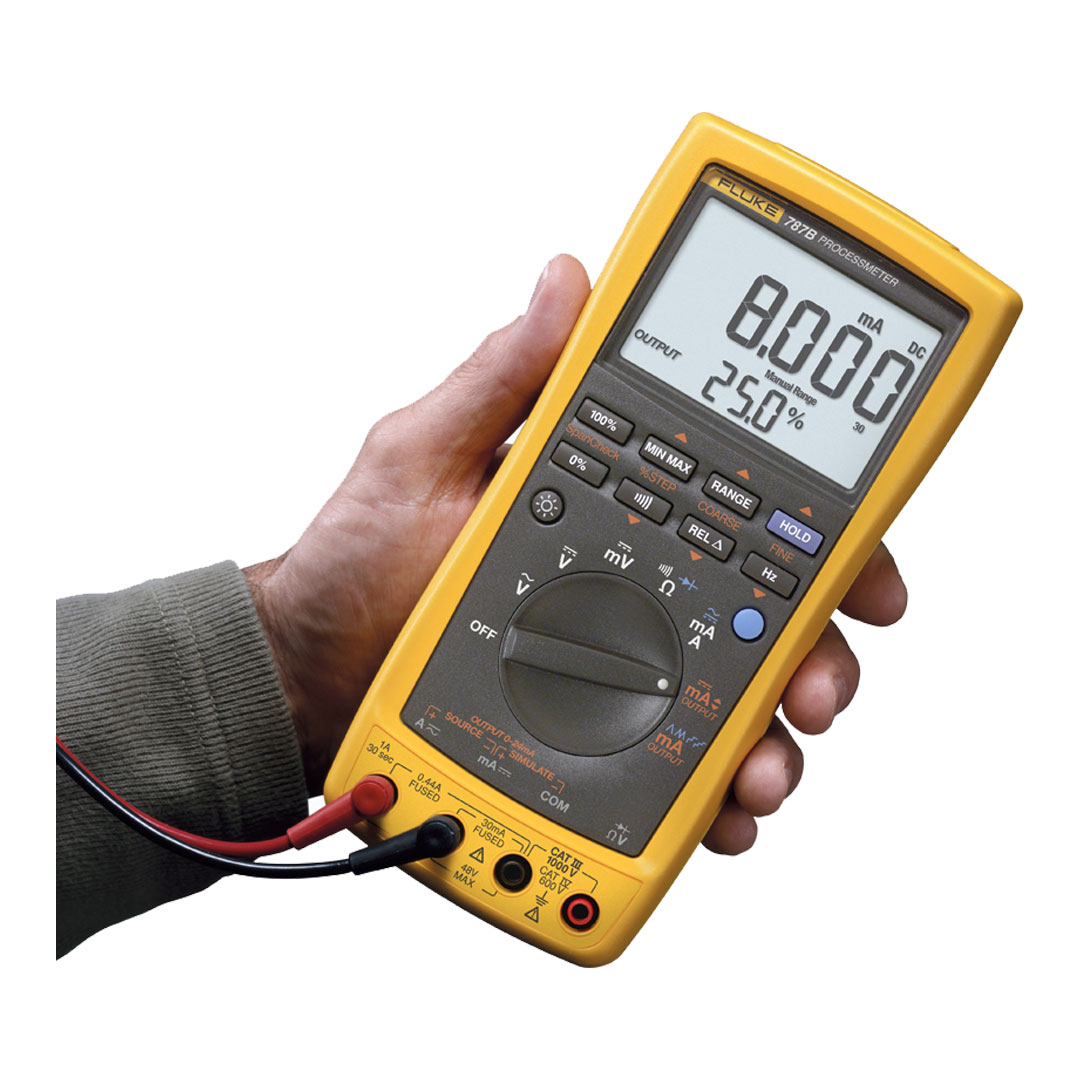

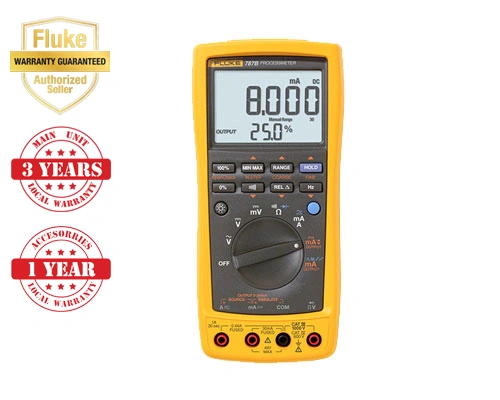

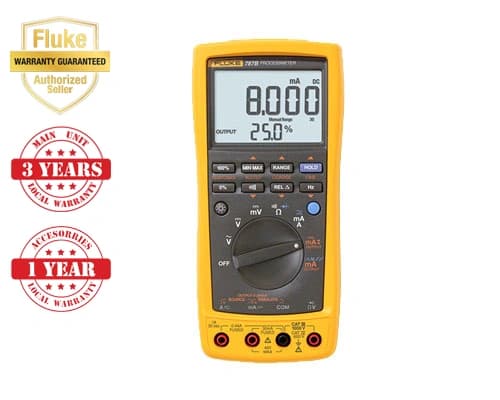

Fluke 787B ProcessMeter
Combines the power of a safety rated digital multimeter and mA loop calibrator into a single compact test tool for troubleshooting and calibrating current loop applications.
Price (excl. GST)
SGD 1,930.00
Qty
Authorized
Cal AvailableThe Fluke 787B ProcessMeter doubles troubleshooting capabilities by combining a safety-rated digital multimeter with an mA loop calibrator in one compact tool. Based on the Fluke 87V meter, the 787B measures, sources, and simulates mA with calibrator-grade accuracy and resolution.
Key capabilities include measuring source and simulating 20 mA DC current while viewing simultaneous mA and percent-of-scale readouts. Users can manually step mA signals at 100%, 25%, with coarse and fine adjustments, or use Auto step and Auto ramp features.
The device meets 1000 V IEC 61010 CAT III and 600 V CAT IV safety standards. As a full-featured precision true-rms multimeter, it includes diode testing, continuity beeper, and frequency measurements to 20 kHz. Additional modes include Min/Max/Average/Hold/Relative functions. Batteries and fuses are easily accessible.
Fluke Connect mobile app and desktop software compatibility enables wireless monitoring, logging, and data sharing.

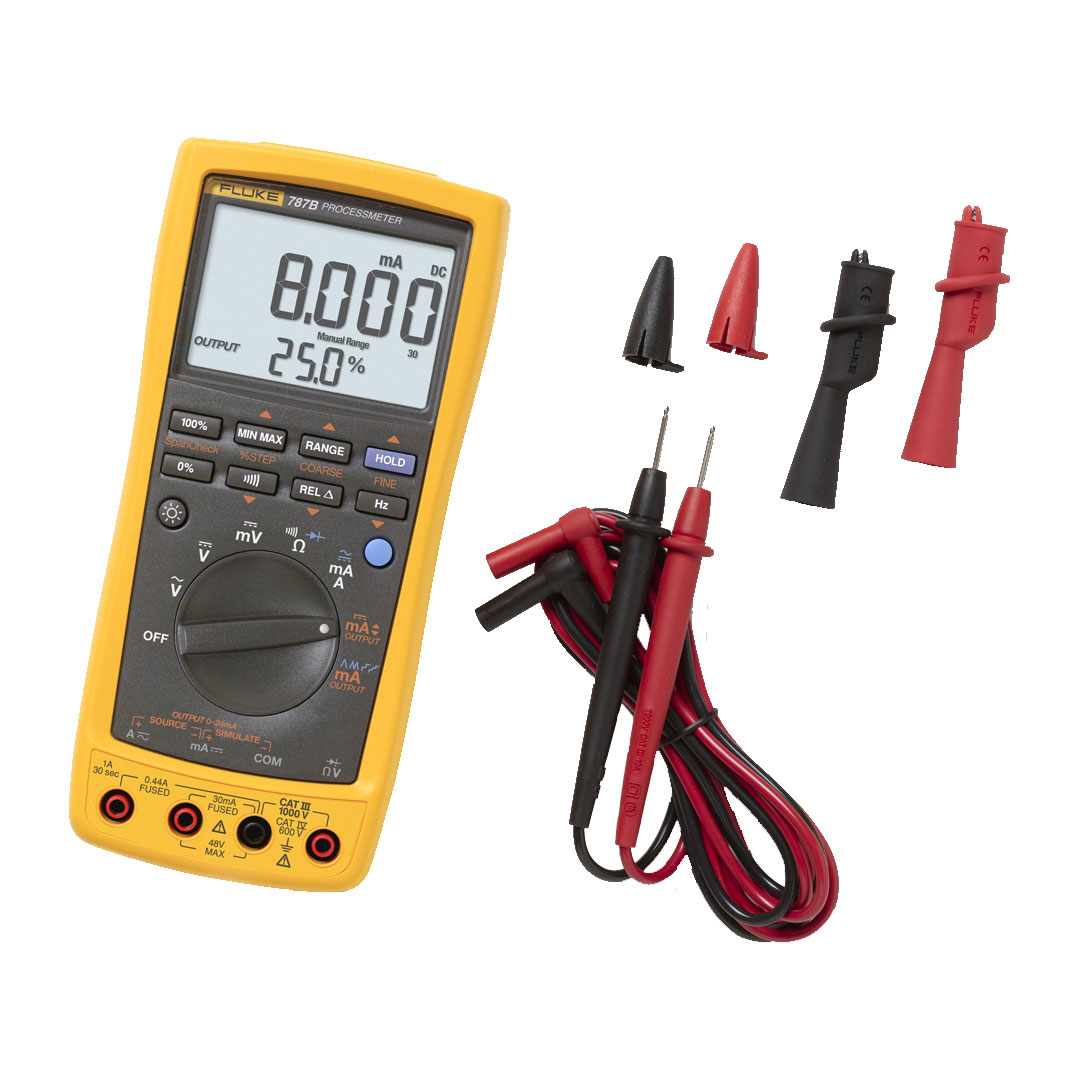

Included: Fluke 787B ProcessMeter, TL71 Premium test leads, AC72 Alligator clips, four AA batteries, quick reference guide, three-year warranty.
