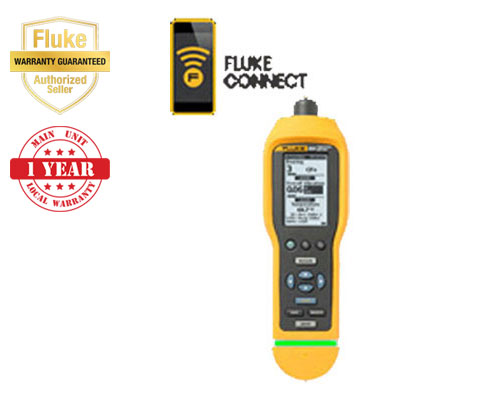

Fluke 805 FC Vibration Meter

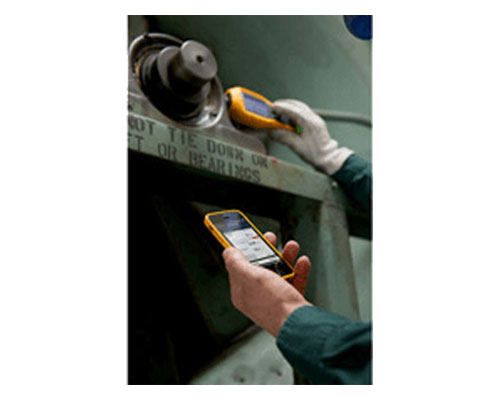

The Fluke 805 FC Vibration Meter enables confident go or no-go maintenance decisions with reliable, repeatable, and accurate vibration screening. Using the Fluke Connect Mobile App, users can manage vibration screening workflows with integrated machine profile functionality. Technicians can create machine profiles via the app and push them directly to the meter, then use the list for work orders and route-based maintenance schedules.

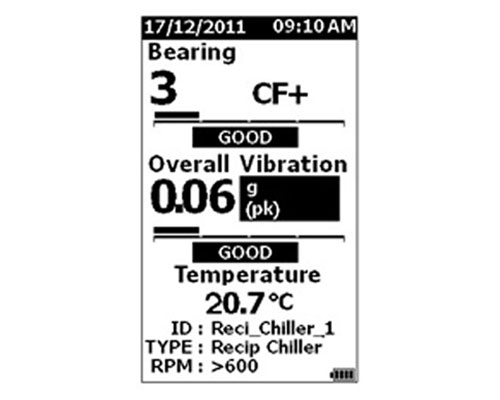

Key Features: - Reliable, repeatable, accurate device for checking bearings and overall vibration - Innovative sensor design minimising measurement variations from device angle or contact pressure - Consistent data quality at both low and high frequency ranges - Four-level severity scale assessing urgency and bearing condition - Data export via USB or wireless Fluke Connect mobile app - Real-time measurement sharing and cloud storage - Trending capability with pre-built Excel templates - Overall vibration measurement (10 Hz to 1,000 Hz) in acceleration, velocity, and displacement units - Crest Factor+ technology for reliable bearing assessment (4,000 Hz to 20,000 Hz) - Comparison with ISO-10816 severity scales - Temperature measurement with spot IR sensor - Storage for up to 3,500 measurements - Optional external accelerometer support - Built-in flashlight for dark areas - Large high-resolution display

The Fluke 805 FC is designed for frontline maintenance teams performing route-based predictive maintenance programmes, providing the data needed to trend machine health over time and schedule repairs before failures occur.
