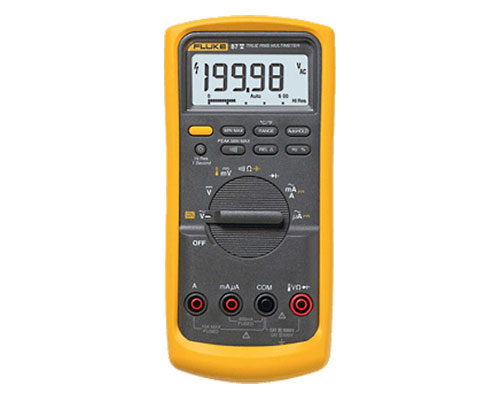

Fluke 87V Industrial Multimeter

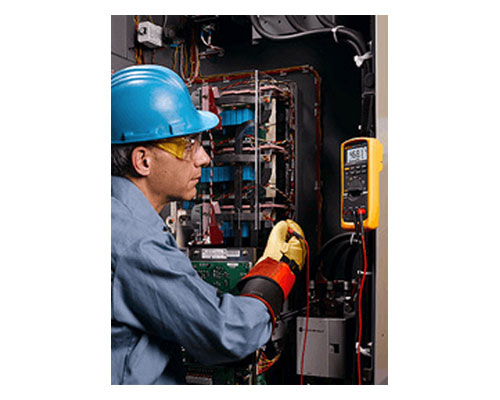

The Fluke 87V Industrial Multimeter provides resolution and accuracy for troubleshooting motor drives, plant automation, power distribution, and electromechanical equipment in loud, high-energy, and high-altitude locations.

Key features include an easy-access door for fast battery changes without breaking the calibration seal, analog bar graph for fast changing or unstable signals, and large digit display with bright two-level backlight for easier reading in low light. Touch Hold keeps readings on display after removing probes.

The 87V identifies complex electrical problems quickly with support for accurate measurements on VFDs using a low-pass filter. It captures intermittents as fast as 250 microseconds using Peak Capture. High-frequency noise from large drive systems is blocked with specially designed shielding.

All inputs are updated to the third edition of EN 61010-1 to CAT III 1000 V and CAT IV 600 V. The meter withstands spikes exceeding 8000 V and includes an audible Input Alert warning if test leads are placed in incorrect input jacks.

A removable holster with built-in test lead and probe storage provides convenience. Relative mode removes test lead resistance, improving low-resistance measurement accuracy. An optional magnetic hanger frees hands during testing.

The device is designed and built in the U.S. and comes with a lifetime warranty.

Voltage DC: Maximum voltage: 1000 V Accuracy: ±(0.05% + 1) Maximum resolution: 10 µV

Voltage AC: Maximum voltage: 1000 V Accuracy: ±(0.7% + 2) True RMS AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz Maximum resolution: 0.1 mV

Current DC: Maximum amps: 10 A (20 A for 30 seconds maximum) Amps accuracy: ±(0.2% + 2) Maximum resolution: 0.01 µA

Current AC: Maximum amps: 10 A (20 A for 30 seconds maximum) Amps accuracy: ±(1.0% + 2) True RMS Maximum resolution: 0.1 µA

Resistance: Maximum resistance: 50 MΩ Accuracy: ±(0.2% + 1) Maximum resolution: 0.1 Ω

Capacitance: Maximum capacitance: 9,999 µF Accuracy: ±(1% + 2) Maximum resolution: 0.01 nF

Frequency: Maximum frequency: 200 kHz Accuracy: ±(0.005% + 1) Maximum resolution: 0.01 Hz

Duty Cycle: Maximum duty cycle: 99.9% Accuracy: ±(0.2% per kHz + 0.1%) Maximum resolution: 0.1%

Temperature Measurement: Range: -200.0 °C to 1090 °C; -328.0 °F to 1994.0 °F (excluding probe) 80 BK temperature probe: -40.0 °C to 260 °C; -40.0 °F to 500 °F, ±2.2 °C or 2% whichever is greater

Conductance: Maximum conductance: 60.00 nS Accuracy: ±(1.0% + 10) Maximum resolution: 0.01 nS

Diode: Range: 3 V Resolution: 1 mV Accuracy: ±(2% + 1)

Operating Temperature: -20 °C to +55 °C Storage Temperature: -40 °C to +60 °C Humidity (without condensation): 0% to 90% (0 °C to 35 °C); 0% to 70% (35 °C to 55 °C) Operating Altitude: 2000 m Overvoltage Category: EN 61010-1 to 1000 V CAT III, 600V CAT IV Agency Approvals: CE, CSA, RCM Size: 201 x 98 x 52 mm (with holster) Weight: 355 g; 624 g with holster Display: Digital 6000 counts updates 4/sec; 19,999 counts in high-resolution mode; Analog 32 segments updates 40/sec; Frequency 19,999 counts updates 3/sec at >10 Hz Warranty: Lifetime Battery Life (Alkaline): ~400 hours typical without backlight Shock: 1 Meter drop per IEC 61010-1:2001 Vibration: Per MIL-PRF-28800 for Class 2 instrument
