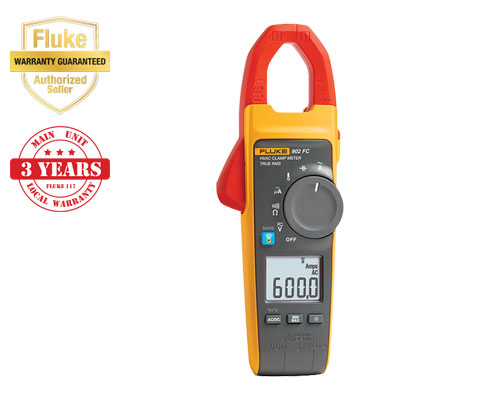

Fluke 902 FC True-RMS HVAC Clamp Meter

The Fluke 902 FC Clamp Meter with Fluke Connect wireless connectivity helps HVAC technicians improve productivity in the field. The rugged dual-rated CAT III 600 V CAT IV 300 V meter equips technicians to perform essential HVAC system measurements including microamps for testing pilot light sensors, resistance up to 60 kΩ, AC current and AC/DC voltage, capacitance, and contact temperature all with one tool. Its small form factor makes it easy to use in tight work spaces.

As part of the Fluke Connect family, the 902 FC transmits measurements to a smartphone or tablet for detailed analysis. Users can trend and monitor measurements live on phone screens and upload data to the cloud. Measurement data from multiple tools can be combined to create and share reports via email and collaborate using ShareLive video calls.

The meter decreases PPE requirements by allowing technicians to take measurements from a safer distance after properly de-energizing and placing the clamp via smartphone synchronization.

Key usability features include ergonomic design for use with personal protective equipment, large backlit display for low light settings, AC current measurement to 600 A, AC and DC voltage to 600 V, capacitance to 1000 µF, DC current to 200 µA, temperature measurement from -10°C to 400°C, True-RMS voltage and current measurements, resistance to 60 kΩ, Min/Max recording capability, and operation on two AA alkaline batteries.
