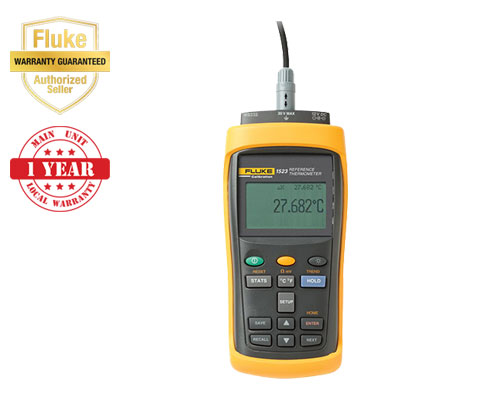

Fluke Calibration 1523 Handheld Thermometer Readout

Measure graph and record three sensor types with one tool

The 1523 lets you handle field applications, laboratory measurements and data logging with ease.

Three sensor types: PRTs: –200 °C to 1000 °C Thermocouples: –200 °C to 2315 °C Precision thermistors: –50 °C to 150 °C

Accuracy features: PRTs: up to ±0.011 °C Thermocouples: ±0.24 °C for J K L M Precision thermistors: ±0.002 °C

Fast mode capabilities: PRTs: 0.45 seconds per sample Thermocouples: 0.3 second per sample Precision thermistors: 0.3 seconds per sample

Graphical display: 128×64 backlit LCD graphic display with ability to plot and scale trends in real time and simultaneous dual channel readings.

Make accurate consistent measurements anywhere. You need accuracy for compliance, product yields, energy savings and consistent results. The 1523 uses current reversal technique to eliminate thermal EMFs for precision temperature measurements. Specifications guaranteed from -10 °C to 60 °C ambient. Special precision resistors and stable reference voltage source keep accuracy virtually insensitive to environmental temperature.

The 1523 Reference Thermometer endures rigorous testing in temperature extremes and harsh conditions of vibration for field use.

INFO-CON connectors ensure correct temperature conversion. Inside the INFO-CON, a memory chip keeps calibration information for attached probe. Probes may be locked by password to specific channels and readouts for security or system calibration traceability. Plug any thermocouple with mini-thermocouple jacks into optional universal thermocouple adapter. Each thermocouple adapter or standard connector supports reference junction compensation with internal precision thermistor.

Monitor trends in lab or field. See trends graphically on 1523 thermometer's 128×64-backlit LCD display. Change graph resolution at touch of button. Document on demand up to 25 readings and associated statistics for easy retrieval. View data through display or upload to PC via RS-232 connection with included 9940 software. Monitor and log more data over time using PC with optional LogWare II software. RS-232-to-USB adapters available for those preferring USB connectors. Battery power lasts at least 20 hours on three AA batteries or use DC power adapter for extended periods.

Applications: Calibration loop checking, plant startup, troubleshooting, maintenance and repair. Use for handy temperature reference in baths, dry-block calibrators, thermowells, clean rooms, engines, heat exchangers, furnaces, freezers, or anything else requiring calibration, checking or maintenance.
