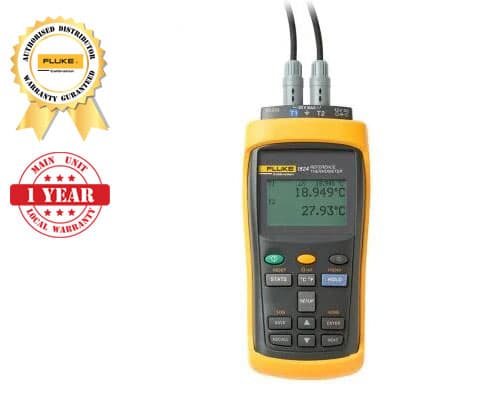

Fluke Calibration 1524 Handheld Thermometer Readout

Measure graph and record three sensor types with one tool. The 1524 Reference Thermometer measures graphs and records PRTs thermocouples and thermistors. This thermometer readout delivers exceptional accuracy wide measurement range logging and trending all in a handheld tool you can take anywhere.

The 1524 lets you handle field applications laboratory measurements and data logging with ease. And with the dual channel measurement capabilities of the model 1524 you can do twice the work in half the time.

Three sensor types supported: PRTs: –200 °C to 1000 °C Thermocouples: –200 °C to 2315 °C Precision thermistors: –50 °C to 150 °C

Accuracy specifications: PRTs: up to ±0.011 °C Thermocouples: ±0.24 °C for J K L M Precision thermistors: ±0.002 °C

Fast mode capabilities: PRTs: 0.45 seconds per sample Thermocouples: 0.3 seconds per sample Precision thermistors: 0.3 seconds per sample

Features graphical display with 128×64 backlit LCD graphic display, plot and scale trends in real time, and simultaneous dual channel readings.

The 1524 uses current reversal technique used in high-end instruments that eliminates thermal EMFs for precision temperature measurements. Specifications are guaranteed from -10 °C to 60 °C ambient.

INFO-CON connectors ensure correct temperature conversion. Inside the INFO-CON a memory chip keeps calibration information for the attached probe. Simply plugging in the probe uploads the information to the readout ensuring the correct temperature conversion for accurate hassle-free measurements.

Monitor trends in the lab or in the field. See trends graphically on the 1524 thermometer's display. You can change the graph's resolution at the touch of a button. Document on demand up to 25 readings and associated statistics for easy retrieval. Data can be viewed through the display or uploaded to PC via RS-232 connection and 9940 software included free. Optional LogWare II software available for monitoring and logging data over time.

Battery power lasts at least 20 hours on three AA batteries or use DC power adapter for extended periods of measurement. Power saving features can be enabled or disabled for longer battery life or greater convenience.

Applications include calibration loop checking, plant startup, troubleshooting, maintenance and repair. Use for temperature reference in baths, dry-block calibrators, thermowells, clean rooms, engines, heat exchangers, furnaces, freezers, or anything else that must be calibrated, checked or maintained.
