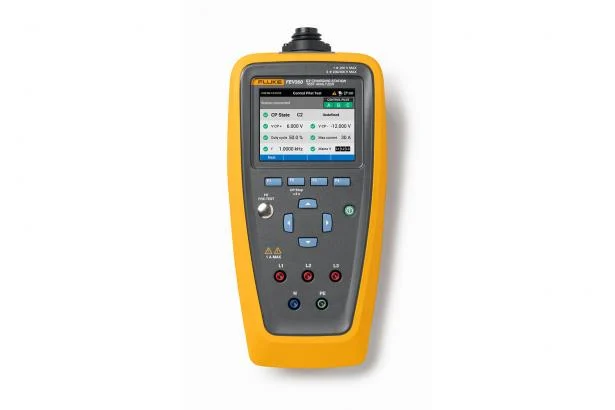

Fluke FEV350 EV Charging Station Analyzer

The FEV350 is a complete solution for safety and performance testing of AC EV charging stations with Type 2 or Type 1 connectors. Designed for technicians required to perform and document multiple tests quickly and efficiently without carrying multiple tools.

Spend less time processing test results and compiling reports with TruTest software, which easily manages measurement data from EVSE inspections, quickly creates inspections and reports, provides Control Pilot waveform analysis with easy pass/fail visuals, compares site data to previous site data to see changes over time, and quickly accesses the latest firmware to update the FEV350.

The solution includes TruTest EV Charging software module for documentation and reporting. The FEV350 provides predetermined test plans and pass/fail indications on measurement results to simplify analysis and time spent testing. The FEV350 EV Charging Station Analyzer is designed in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.

Available measurements include: PE (protective) earth pre-test Visual inspection 30 mA RCD + 6 mA RDC-DD trip test Nominal voltage + phase sequence Auto control pilot with waveform analysis Proximity pilot Error testing

Supported measurements with compatible Fluke multi-function testers include earth bond, insulation, and loop/line impedance.
