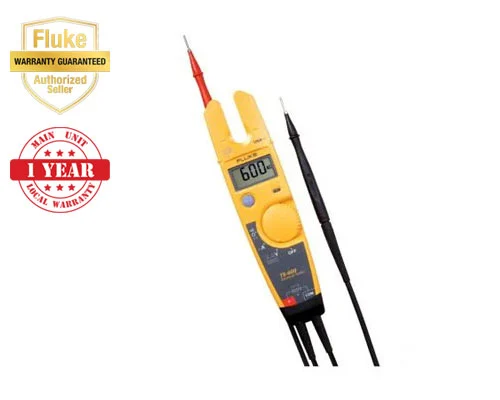

Fluke T5-600 Electrical Tester

The T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current all with one compact rugged tool. Just select volts, ohms, or current and the tester does the rest.

Key Features:

Measure current up to 100 A without breaking the circuit using the OpenJaw design, which allows fast and easy current measurement safely without metallic contact to a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester.

Meter automatically selects AC or DC voltage for tests up to 600 V. Voltage tests are faster and easier than ever before. Just turn the knob to voltage and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage depending on what is detected. This meter is suitable for both residential or commercial applications and is designed with a CAT III 600 V safety rating.

Resistance measurements up to 1000 ohms plus continuity test functionality.

Work in tight spaces with detachable SlimReach probe tips.

Additional benefits include: Withstand a 10 ft drop Conserve battery life with auto-off mode Fit in one hand with handy probe storage in the back of the holster Accept Fluke accessory test clips with the test leads

Electrical Specifications: Jaw opening: 12.9 mm (0.5 in) Max wire size: 1/0 THHN Cable Current range AC rms: 0 to 100.0 A Accuracy AC current (50/60 Hz): 3% ± 3 counts AC response: Averaging Voltage range AC/DC: 0 to 600 V Voltage accuracy AC: 1.5% ± 2 counts Voltage accuracy DC: 1% ± 1 count Resistance range: 0 to 1000 Ω Continuity beeper threshold: On at < 25 Ω, off at > 400 Ω Volts indicator LED threshold: Guaranteed on by 30 V AC

Environmental Specifications: Operating temperature: -10°C to 50°C Storage temperature: -30°C to 60°C Humidity (without condensation): 0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C) Operating altitude: 2000 meters max Temperature coefficient: 0.1 x (specified accuracy)/°C (< 18°C or > 28°C)

Safety Specifications: Measurement Category: IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac Agency approvals: CSA, TUV Maximum voltage: 600 V between any terminal and earth ground

Mechanical and General Specifications: Size: 30.5 x 51 x 203 mm Weight: 300 g Battery life: 200 hour zinc chloride, 400 hour alkaline Battery type: 2 x AA Low battery indicator: Yes Current sensor opening: 12.9 mm
