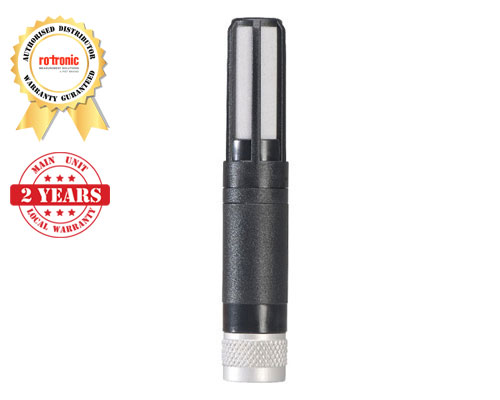

HC2A-SH High Precision Temperature and Humidity Probe
A high-accuracy probe measuring humidity and temperature while calculating dew/frost point for demanding industrial applications.
Price (excl. GST)
SGD 2,519.00
Qty
Authorized
Cal AvailableThe HC2A-SH fulfills stringent measurement accuracy demands. It measures humidity and temperature, then calculates dew/frost point values.
Primary applications include HVAC, food industry, building services, equipment, paper, textile, and pharmaceutical sectors.
Key Specifications: Operating Range: -50...100 °C / 0...100 %rh Accuracy: ±0.5 %rh / ±0.1 K at 10...30 °C Humidity Sensor: Hygromer HT-1 Temperature Sensor: PT100 1/3 DIN Class B Probe Protection: Polycarbonate plastic cage, black Power Supply: 3.3...5 VDC Current Consumption: 4.5 mA at 3.3 VDC Output Signals: 2 x 0...1 VDC; UART digital Response Time (t63): <15 sec. Long-term Stability: <1 %rh / year Max. Cable Length: Up to 5 m (passive); 100 m (active) Dimensions: Ø15 x 83 mm Weight: 10 g Enclosure Material: Polycarbonate Reproducibility: <0.02 %rh / 0.01 K
Download Datasheet (PDF)Related Products
