FLUKE-805/ES

  • Mfr. Part No. FLUKE-805/ES
  • Warranty 1 Year
  • Manufacturer Fluke Industrial

Price

Per unit SGD 2,750.00 (inclusive of GST)
Quantity
2 left in stock

Product Details

External Vibration Sensor for the 805 Vibration Meter

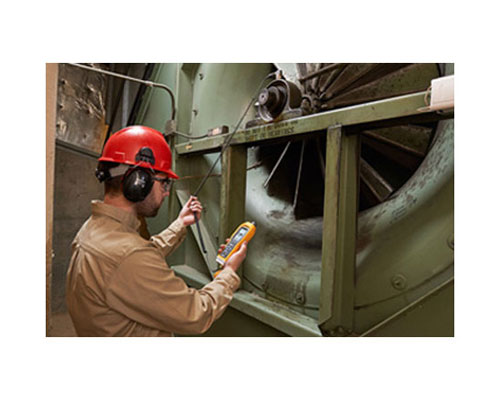

The Fluke 805ES is an external vibration sensor that is ideal in situations for which it is either difficult or impractical to use the onboard vibration sensor tip of the 805 Vibration Meter. The 805ES allows you to take measurements in crowded or hard-to-reach locations behind machine guards or enclosures or in out-of-reach places where it is difficult to apply sufficient manual pressure to the 805 Vibration Meter.

  • Low-profile 90-degree sensor body allows the sensor to get into tight spots
  • Rugged coiled cable minimizes dangling while stretching to more than 7ft when needed
  • Powerful "U" shaped magnet mount creates a firm connection to flat or curved measurement surfaces
  • Rugged sealed cable connector with strain relief tail reduces cable wear
  • Removable sensor magnet to allow for direct attachment to a sensor mounting pad or threaded hole on a piece of equipment
  • Connects directly to 805 Vibration Meter SMB connector located in the heel of the meter

Product Specification

Performance
Measurement range 7 g pk (68.7 m/s² pk)
Frequency range 0 to 6000 cpm (0 to 100 Hz)
Relay 3A Form C 480 VAC
Relay (Contacts) (DPDT) Normally open / closed
Environmental
Temperature range (Operating) -13 to 140°F (-25 to 60°C)
Enclosure rating IP66
Physical
Size (Width x Height x Depth) 4.35 x 3.30 x 4.35 in (110.5 x 83.8 x 110.5 mm)
Weight 2.5 lb (1.134 kg)
Sensing element Magnet
Housing material Aluminum alloy
Electrical connector Screw terminals
Screw terminal wire size 24-14 AWG (0.2 - 2.5 mm²)
Cable input 3/4-14 NPT
Mounting hole size 0.25 in (6.4 mm)
Sensing geometry Inertial element
