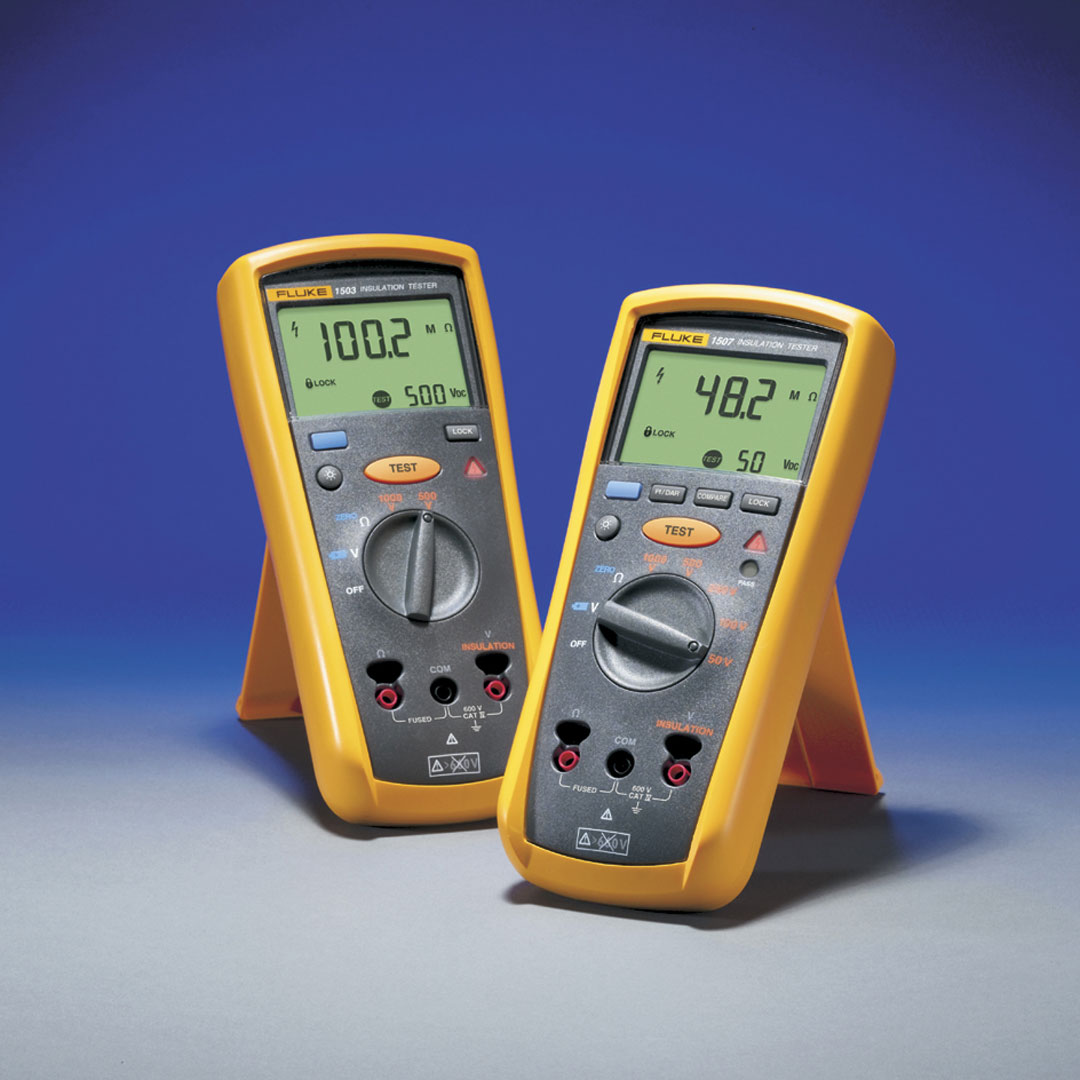

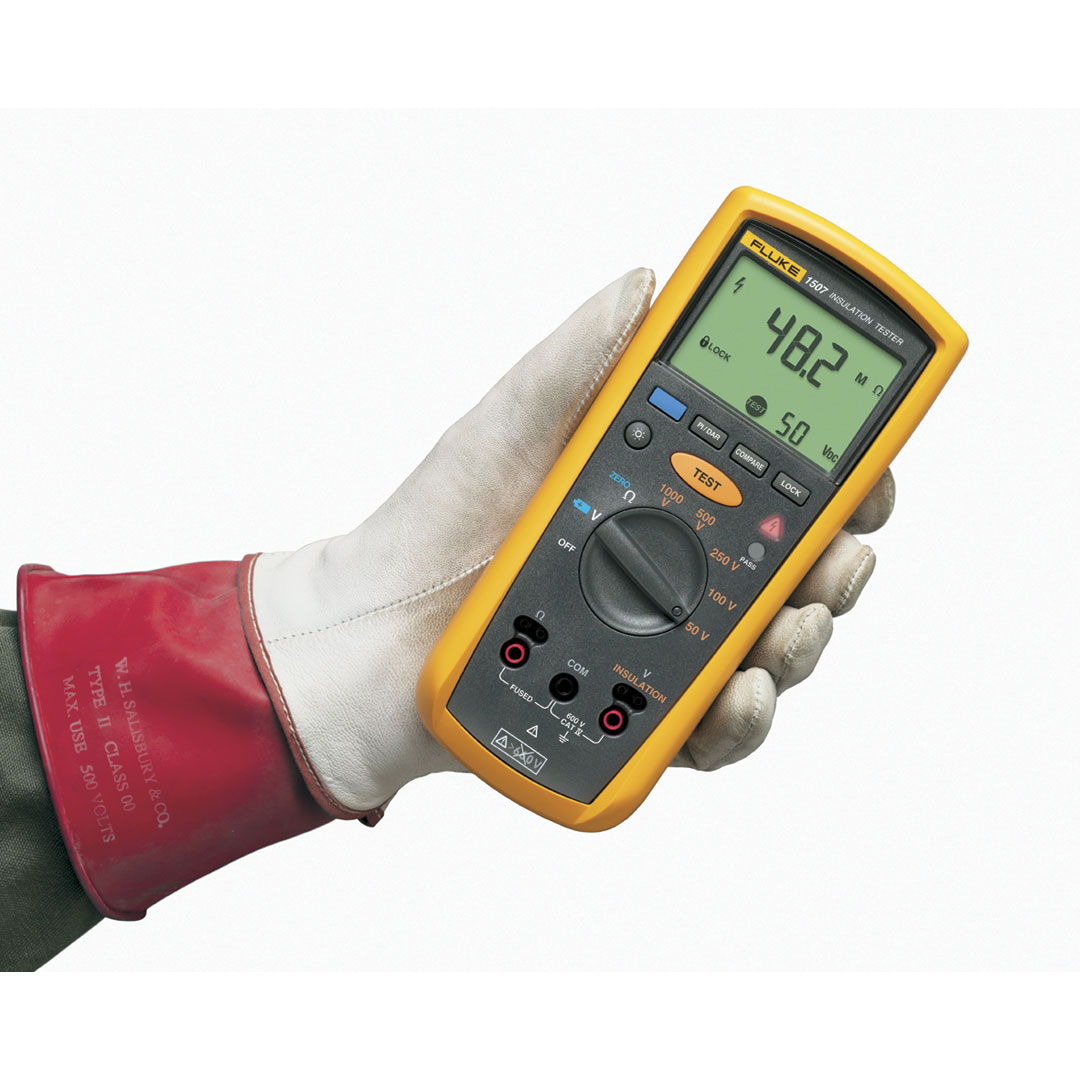

Fluke 1507 Insulation Resistance Testers

The Fluke 1507 is a versatile compact handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.

Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features like the remote probe save both time and money, especially when performing repetitive tests. Its reasonable price and rugged reliability make it an excellent value.

Key capabilities include: Performs insulation tests from 0.01 MΩ to 2.0 GΩ Includes live circuit detection to prevent insulation test if voltage >30 V is detected Includes auto-discharge of capacitive voltage for added user protection Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ Provides lo-ohms earth-bond continuity (200 mA) Simplifies repetitive or hard-to-reach testing with the remote test probe Saves battery power with auto power off Presents results on a large backlit display Features CAT IV 600 V overvoltage category rating Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty Accepts optional Fluke TPAK magnetic hanging system Runs on four AA alkaline batteries for at least 1000 insulation tests Automatically calculates Polarization Index (PI) and Dielectric Absorption Ratio (DAR) Makes repetitive tests simple and easy with a Compare (Pass/Fail) function Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
