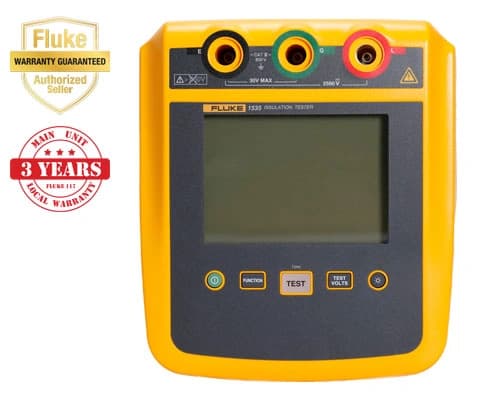

Fluke 1535: 2500V Insulation Resistance Meter — Digital High-Voltage Megohmmeter
A fast-measurement high-voltage megohmmeter with up to 500 GΩ insulation resistance measurement range and test voltages up to 2500V, featuring automatic PI and DAR calculation for demanding industrial applications.
Price (excl. GST)
SGD 2,080.00
Qty
Authorized
Cal AvailableFast-measurement megohmmeter featuring up to 500 GΩ insulation resistance testing capability with test voltages of 250V, 500V, 1000V, and 2500V. Automatically calculates polarization index (PI) and dielectric absorption ratio (DAR) for comprehensive insulation assessment.
Extended battery life supports up to 1300 measurements at 2500V or 6500 measurements at 250V. Safety features include a dangerous voltage alarm and CAT IV 600V compliance with China power industry specification DLT845.
All probe connections are rated for 30,000 mating cycles. Maintains specifications at 50°C temperature and 80% relative humidity. Features a large 73.5 mm × 104 mm display and bar graph range from 0Ω to 1TΩ.
Leakage current measurement range: 1 nA to 2 mA. Capacitance measurement range: 0.01 µF to 2.00 µF.
Available as model 1535 (insulation testing) or 1537 (adds AC/DC voltage, resistance measurement, fine-tunable test voltage 250–2500V in 100V steps, step voltage mode with linear voltage increment, dielectric discharge rate calculation, user labels, data storage, and PC download capability).
Download Datasheet (PDF)Related Products
Fluke Industrial
Fluke 1503 Insulation Resistance TestersA rugged compact insulation resistance tester for residential and commercial electricians. Handles basic insulation testing needs with essential features at an accessible price point.
SGD 1,058.00
Fluke Industrial

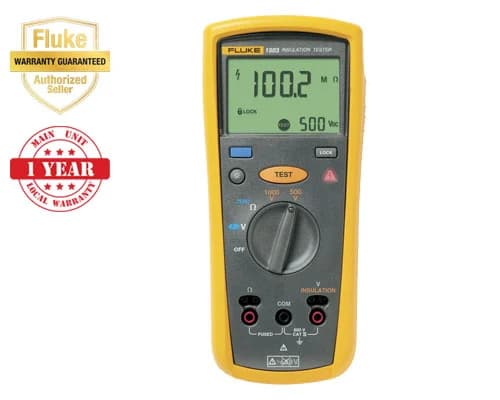

Fluke 1507 Insulation Resistance TestersA versatile compact handheld insulation tester for advanced industrial and electrical insulation testing with multiple test voltages, ideal for troubleshooting, commissioning, and preventative maintenance applications.
SGD 1,248.00
Fluke Industrial

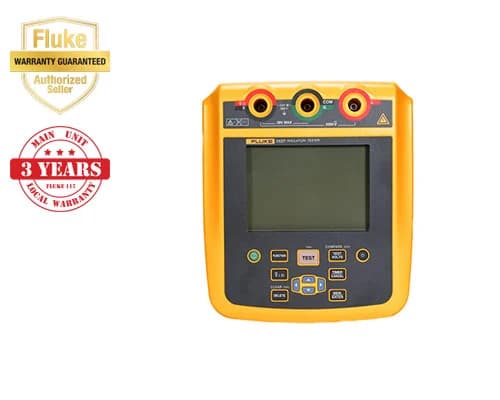

Fluke 1537: 2500V Insulation Resistance Meter (Digital High-Voltage Megohmmeter)The Fluke 1537 is a digital high-voltage megohmmeter with up to 500 GΩ insulation resistance measurement range, featuring fast-measurement technology for stable readings and high work efficiency.
